Original: $32.03
-70%$32.03
$9.61The Story
Elitech EK-3010 is a temperature controller with touch screen buttons. It is suitable for temperature control of refrigeration or heating equipment. Due to its touch buttons, Elitech equipped the EK series with a key lock function to avoid accidental touches that may cause the parameters to change. The touch button adopts high-precision digital capacitance measurement technology, which can avoid various interferences such as water droplets; compared with mechanical buttons, there is no mechanical action, long life, and stable performance.

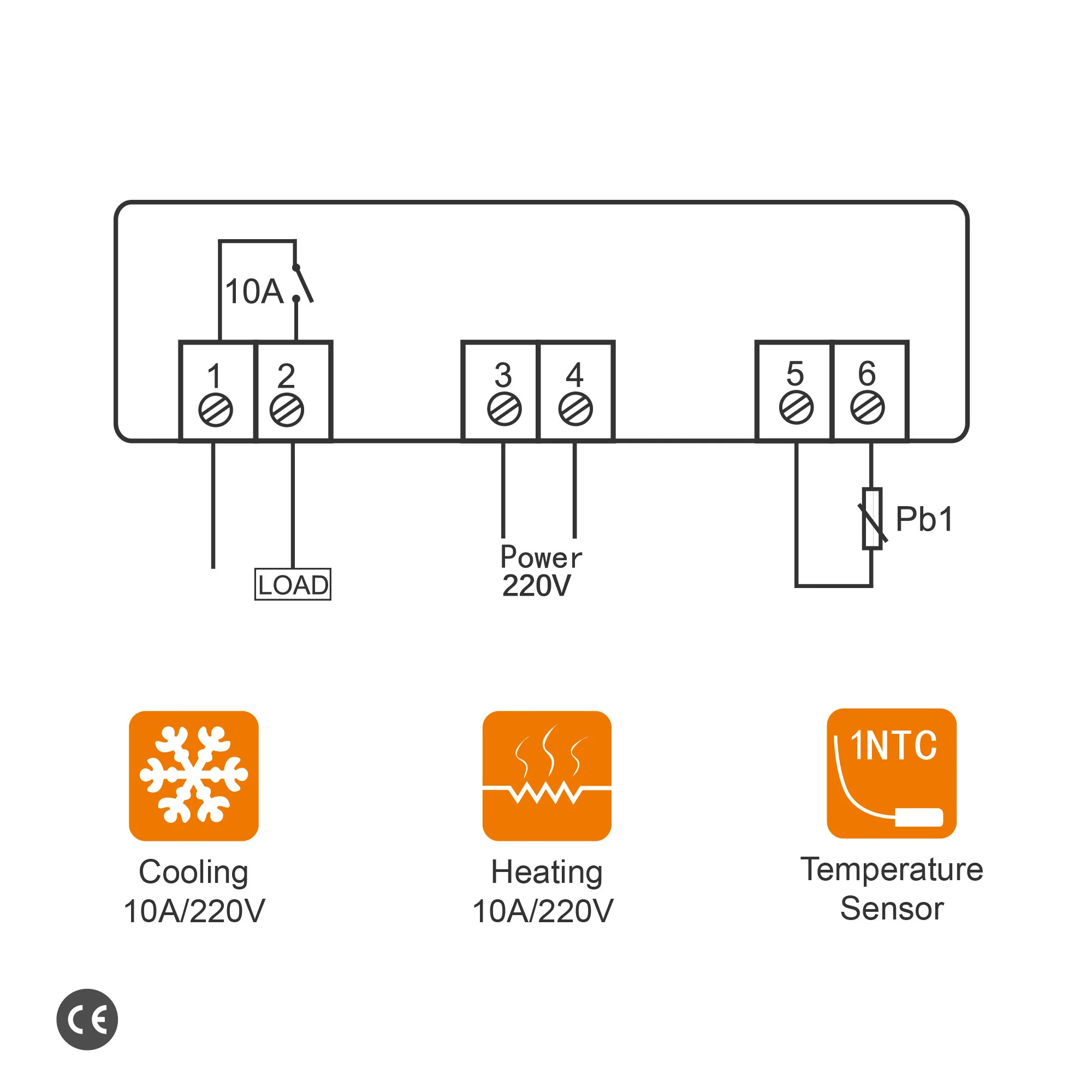

One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/heating equipment.
With temperature measurement, temperature display, temperature control, temperature calibration, over-temperature alarm and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.
Elitech EK-3010 temperature controller is suitable for temperature control of cold storage, freezer, operating console refrigeration equipment and heating equipment.
EK-3010 Parameter and Main Function
EK-3010 Feature
 |
 |
 |
|
Touch Keys, Good User Experience* High precision capacitive touch keys for greater reliability |
Stable & Reliable* |

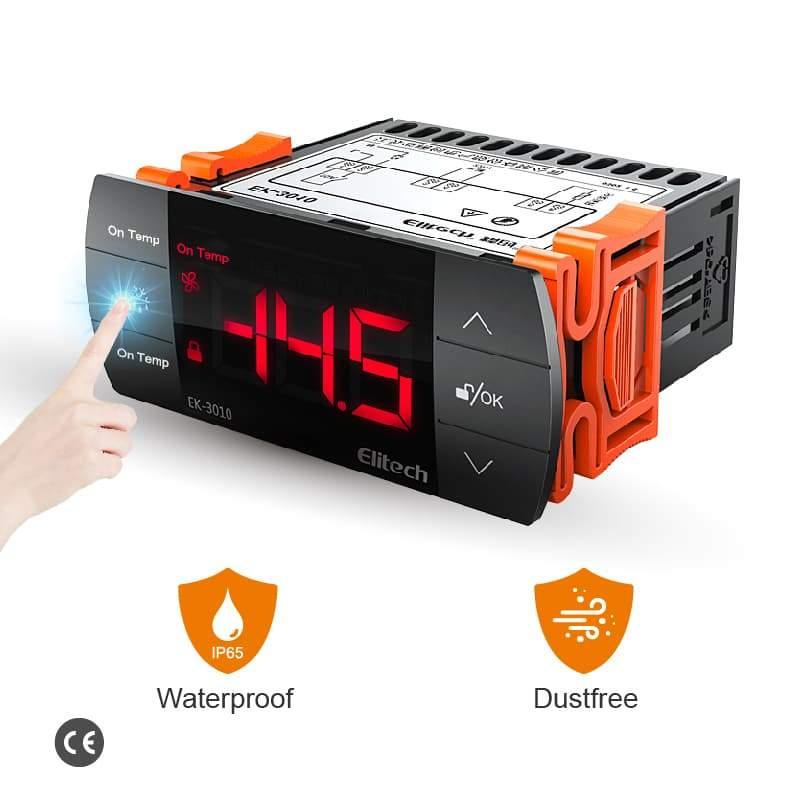

Waterproof & Dustproof One-piece front panel design for greater protection against moisture and dust |
 |
 |
 |
|
Buzzer Alarm Output, More Reliable* Sensor fault alarm and over-temperature alarm |
Easy to Use, No Menu* Single-click to complete the general settings directly, no need to enter the menu |

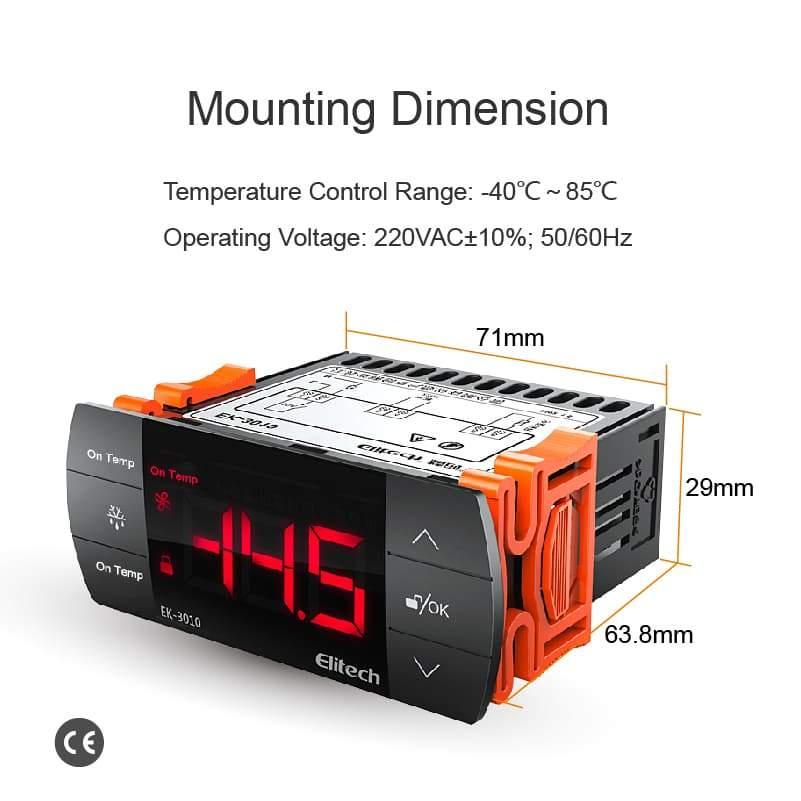

Wide Control Range, Wider Application* The temperature control range is -40℃～85℃, Can be used for multiple applications |

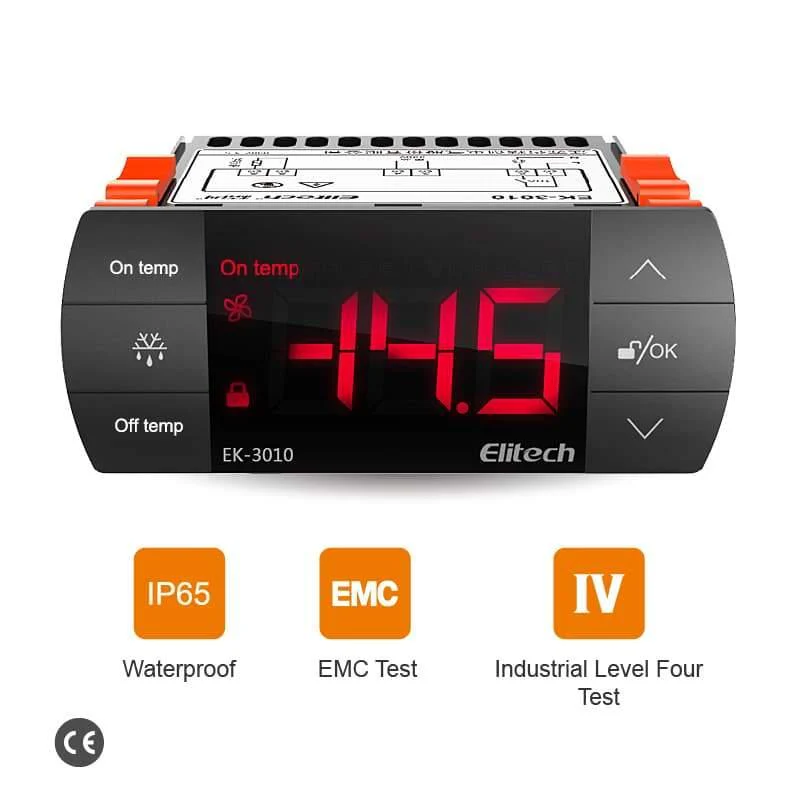

EK-3010 Panel Instruction
EK Series Touch Key Temperature Controller Comparison Chart
| Model | Control Output | Sensor | Communication Function | ||||
| Cooling | Heating | Defrost | Fan | Light | Defrost Sensor | ||
| E-1000 | 10A | 10A | / | / | 10A | / | / |
| EK-3010 | Cooling / Heating (10A) | / | / | / | / | / | |
| EK-3020 | 10A | / | 10A | / | / | / | / |
| EK-3021 | 10A | / | 10A | / | / | √ | / |
| EK-3030 | 10A | / | 10A | 10A | / | √ | / |
| EK-3030E | 10A | / | 10A | 10A | / | √ | 485 interface |
Elitech One-way Control Output Temperature Controller Comparison Chart
| Function | Model | Relay Output | Input | Others | |
| Temperature Sensor | Defrost Sensor | ℃/℉ | |||
| Refrigeration | STC-8000HX | 10A | √ | / | / |
| ECS-11 | 30A | √ | / | √ | |
| Refrigeration/Heating | EK-3010 | 10A | √ | / | / |
| ECS-02CX | 10A | √ | √ | √ | |
| ECS-961neo | 17A | √ | / | / | |
| ECS-16 | 30A | √ | / | / | |
| Refrigeration/Heating/Alarm | STC-200 | 10A | √ | / | / |
Elitech EK-3010 Related Documents
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Elitech EK-3010 is a temperature controller with touch screen buttons. It is suitable for temperature control of refrigeration or heating equipment. Due to its touch buttons, Elitech equipped the EK series with a key lock function to avoid accidental touches that may cause the parameters to change. The touch button adopts high-precision digital capacitance measurement technology, which can avoid various interferences such as water droplets; compared with mechanical buttons, there is no mechanical action, long life, and stable performance.
One-way sensor input: temperature probe sensor.
One-way control output: refrigeration/heating equipment.
With temperature measurement, temperature display, temperature control, temperature calibration, over-temperature alarm and sensor fault alarm function. One-touch restoration of original setting values for easy re-adjustment of parameters.
Elitech EK-3010 temperature controller is suitable for temperature control of cold storage, freezer, operating console refrigeration equipment and heating equipment.
EK-3010 Parameter and Main Function
EK-3010 Feature
|
|
|
|
|
Touch Keys, Good User Experience* High precision capacitive touch keys for greater reliability |
Stable & Reliable* |
Waterproof & Dustproof One-piece front panel design for greater protection against moisture and dust |
|
|
|
|
|
Buzzer Alarm Output, More Reliable* Sensor fault alarm and over-temperature alarm |
Easy to Use, No Menu* Single-click to complete the general settings directly, no need to enter the menu |
Wide Control Range, Wider Application* The temperature control range is -40℃～85℃, Can be used for multiple applications |
EK-3010 Panel Instruction
EK Series Touch Key Temperature Controller Comparison Chart
| Model | Control Output | Sensor | Communication Function | ||||
| Cooling | Heating | Defrost | Fan | Light | Defrost Sensor | ||
| E-1000 | 10A | 10A | / | / | 10A | / | / |
| EK-3010 | Cooling / Heating (10A) | / | / | / | / | / | |
| EK-3020 | 10A | / | 10A | / | / | / | / |
| EK-3021 | 10A | / | 10A | / | / | √ | / |
| EK-3030 | 10A | / | 10A | 10A | / | √ | / |
| EK-3030E | 10A | / | 10A | 10A | / | √ | 485 interface |
Elitech One-way Control Output Temperature Controller Comparison Chart
| Function | Model | Relay Output | Input | Others | |
| Temperature Sensor | Defrost Sensor | ℃/℉ | |||
| Refrigeration | STC-8000HX | 10A | √ | / | / |
| ECS-11 | 30A | √ | / | √ | |
| Refrigeration/Heating | EK-3010 | 10A | √ | / | / |
| ECS-02CX | 10A | √ | √ | √ | |
| ECS-961neo | 17A | √ | / | / | |
| ECS-16 | 30A | √ | / | / | |
| Refrigeration/Heating/Alarm | STC-200 | 10A | √ | / | / |
