Temtop PMD 351 Professional Handheld Aerosol Dust Monitor, 5-Channel Particle Counter for PM1.0, PM2.5, PM4.0, PM10 & TSP, All-Metal Industrial Design with 2 Million Data Points & USB Export for Cleanrooms & Labs

PMD 351 is a small, light, and battery-powered aerosol (mass) monitor with five channels for simultaneous detection of PM1.0, PM2.5, PM4.0, PM10, and TSP(Total SuspendedParticles) mass concentrations.

With a large display screen and seven buttons for operation, the monitor is simple and efficient, suitable for fast detection in multiple scenarios. The internal high-performance lithium battery allows the monitor to run continuously for 8 hours. PMD 351 also has a built-in 8GB large-capacity storage and supports two communication modes: USB and RS-485. The detected data can be viewed directly on the screen or exported through the USB port for analysis.

Temtop PMD 351 Parameter

Item	Parameter
Particle Diameter	PM1.0, PM2.5, PM4.0, PM10,TSP
Measure Range	0~1000 ug/m3
Accuracy	±10%
Resolution	0.1 ug/m3

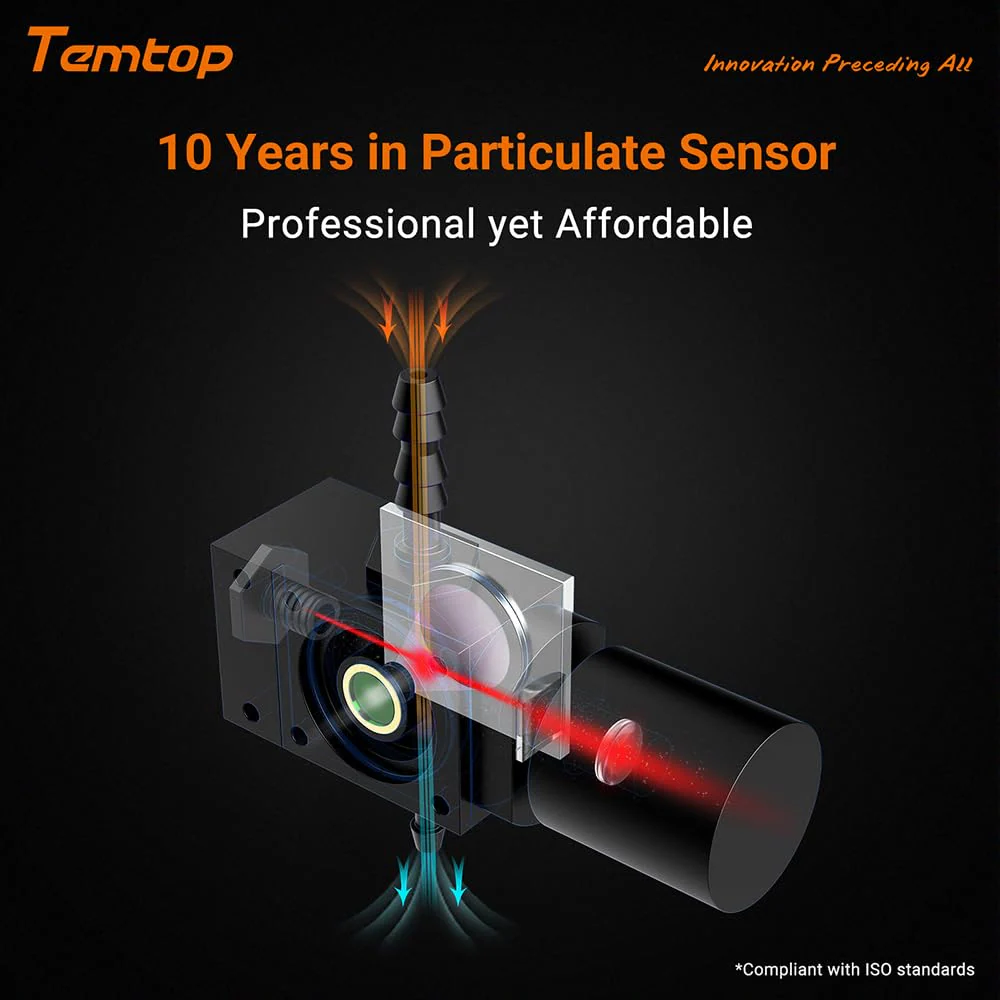

Principle	Light scattering technique
Light Source	50mW, 780nm
Sampling Time	1 min
Flow	2.83 L/min

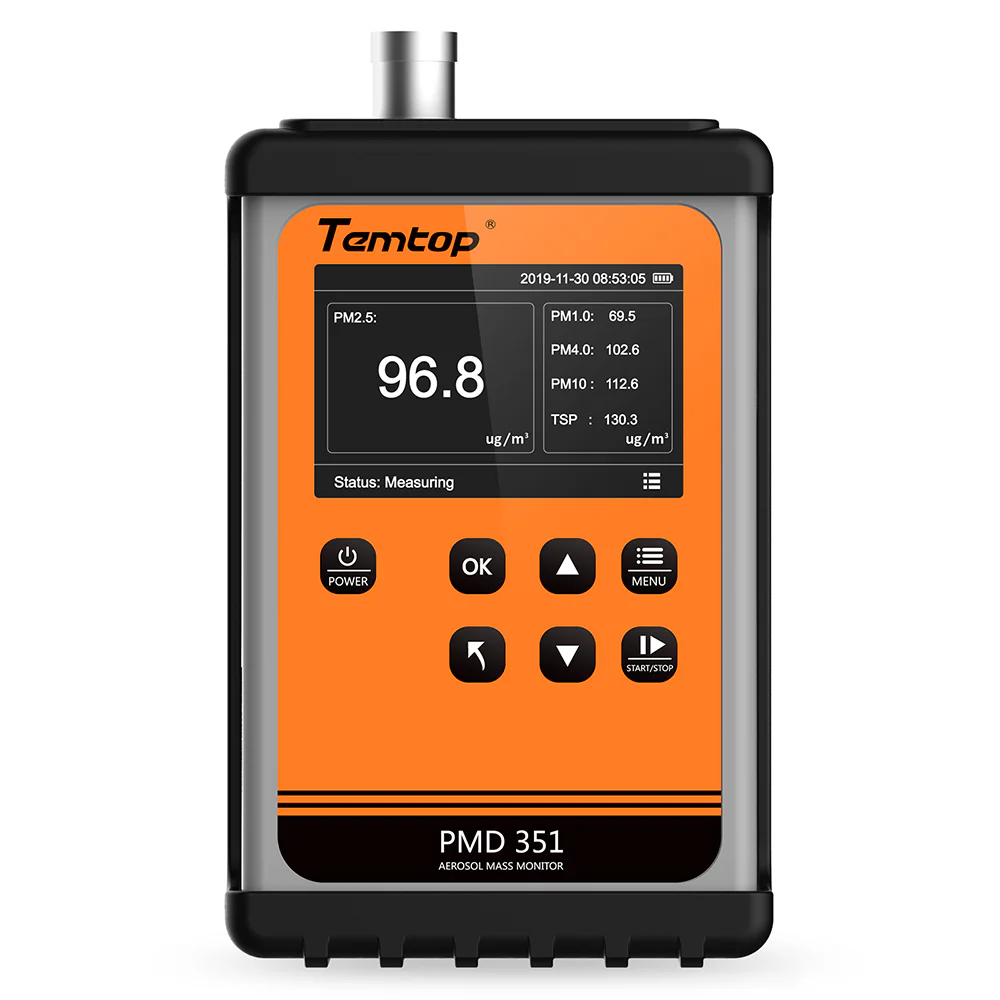

Display	4.0" TFT LCD screen
Communication	USB /RS-485
Memory	2,000,000 reading
Battery	Rechargeable lithium battery
Charing Time	3.5h
Operating Time	8h
Operating Temperature	0~50 ℃
Storage Temperature	-20~60 ℃

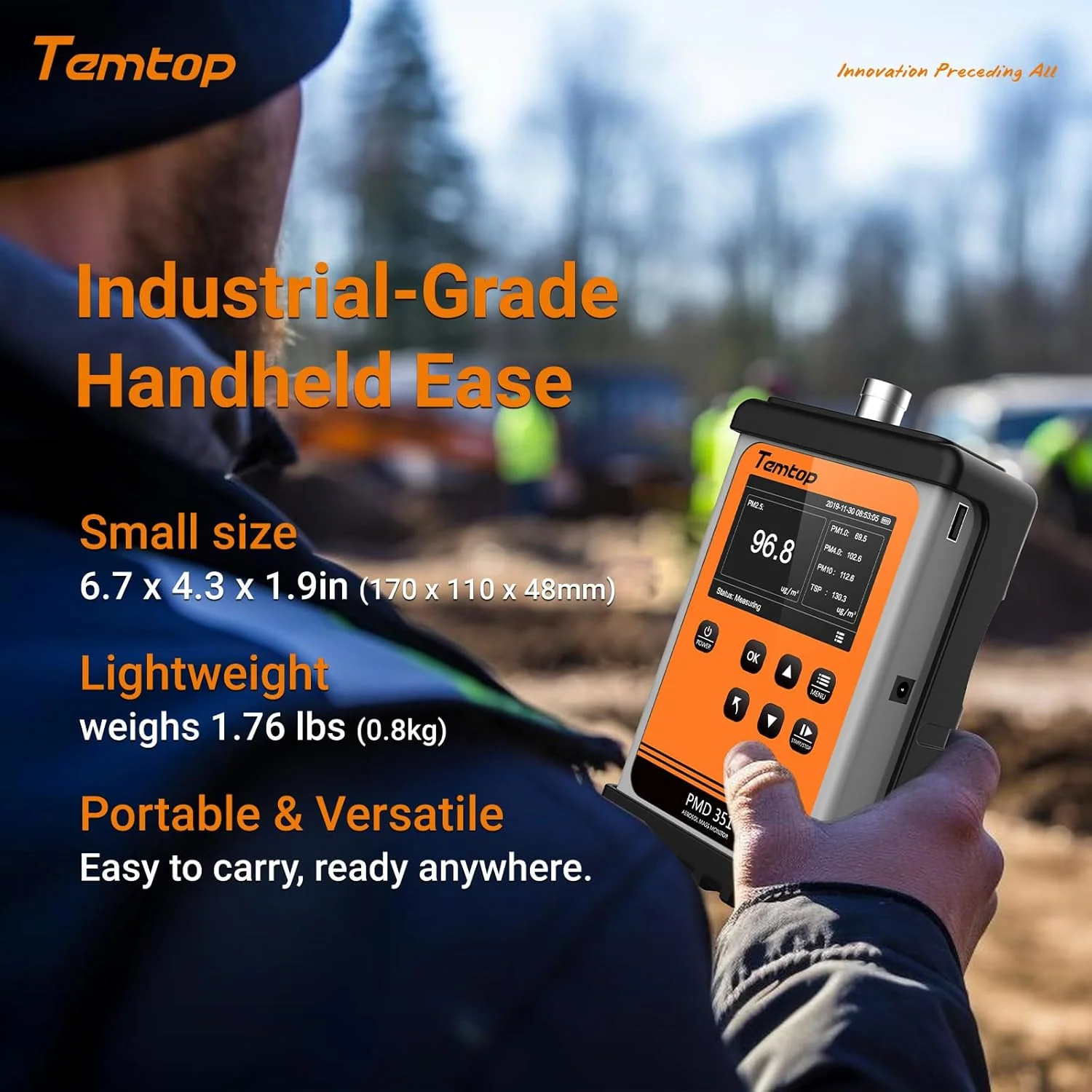

Monitor Dimension	170×110×48 mm
Weight	850g

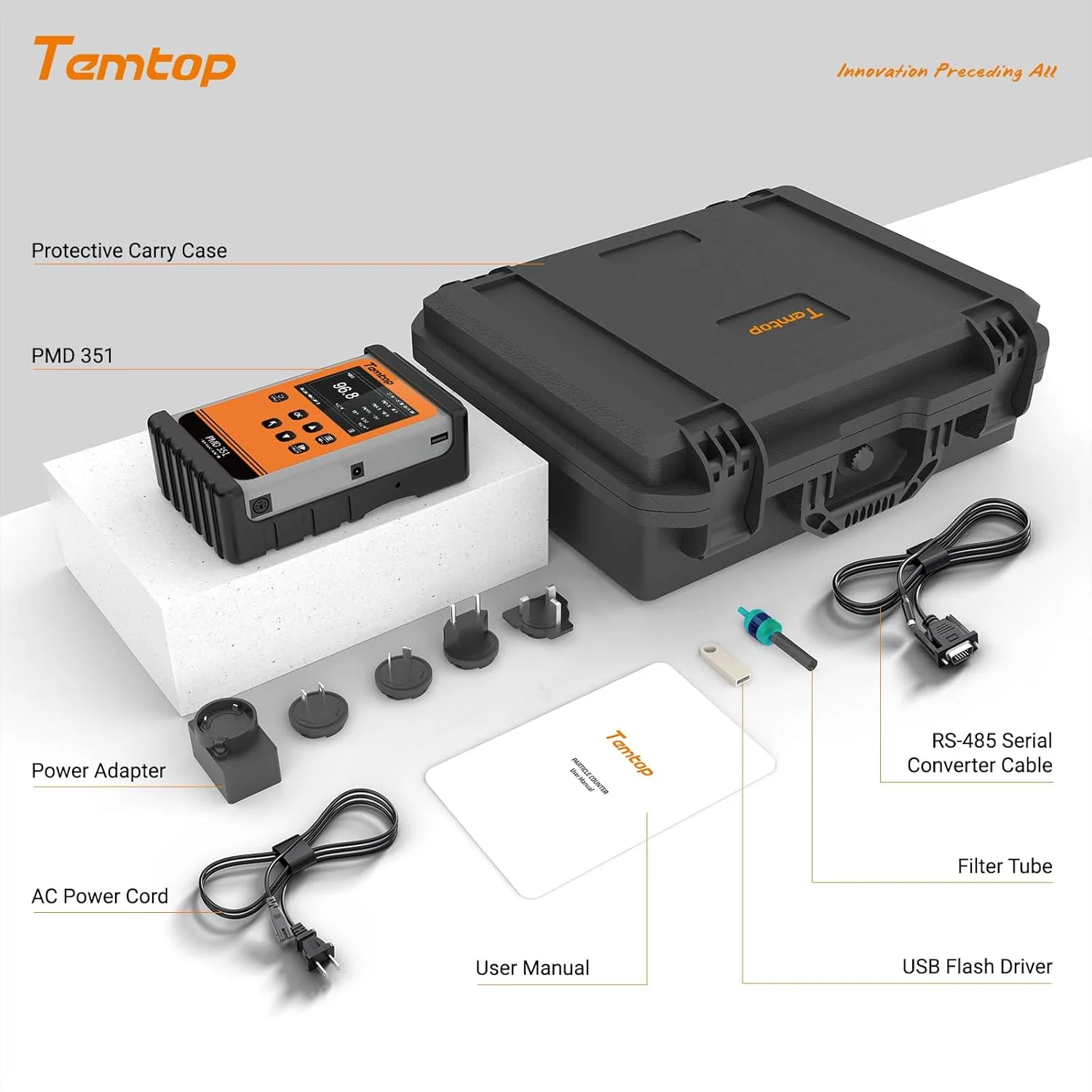

Temtop PMD 351 Package

• PMD 351 & PU Protective Case
• Battery Charge
• RS-485 Series Converter Cable
• AC Power Cord
• Filter Tube
• PMD 351 User Manual
• Carrying Case
• USB Flash Drive

Temtop PMD 351Related Documents

• Temtop PMD 351 Particle Counter User Manual
• Temtop PMD-351 Particle Counter CE Certification
