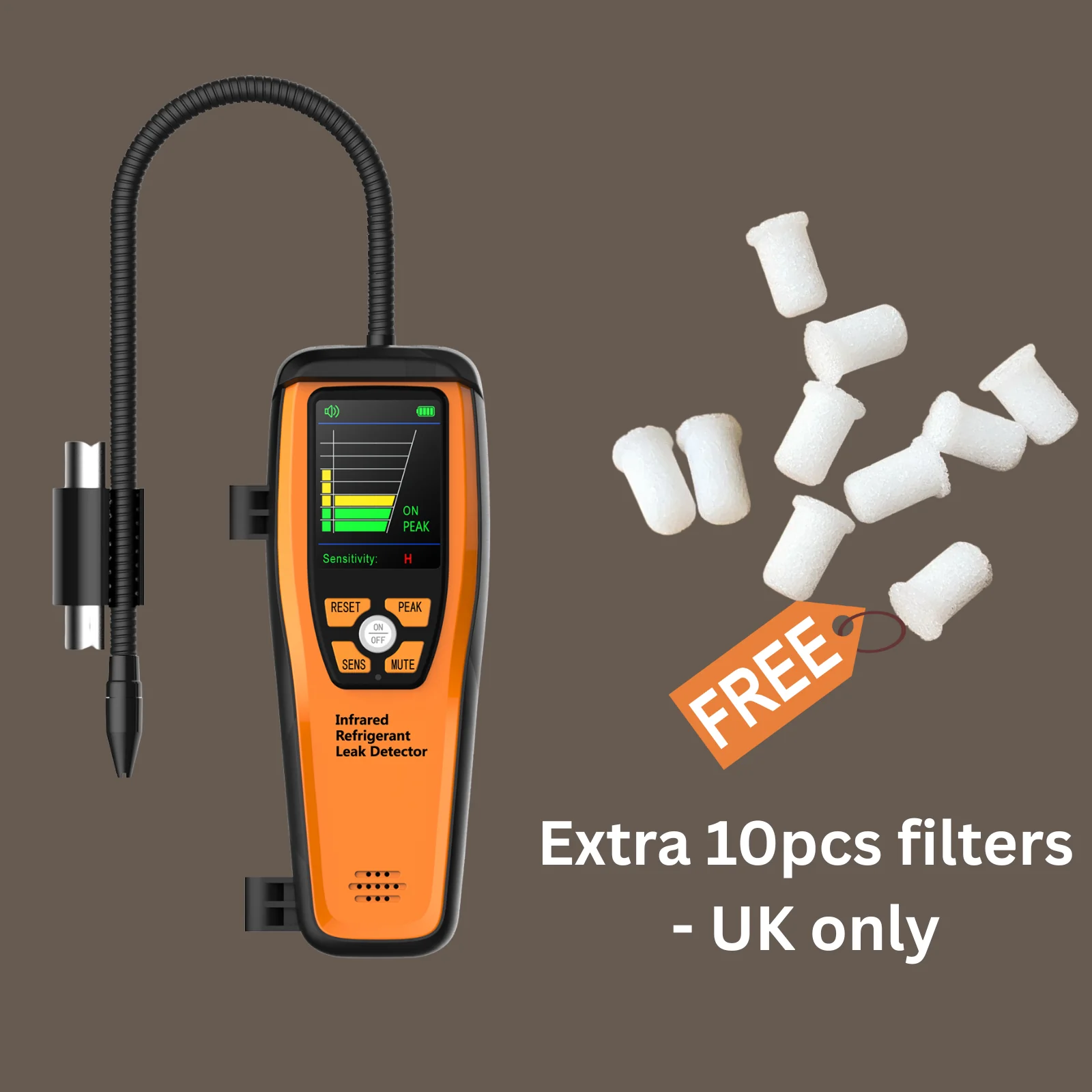

Elitech ILD-200 Electronic Refrigerant Heat Pump Leak Detector HVAC, Freon Leak Detector, Infrared Sensor up to 10 years' service life, 4g/yr, PEAK Record

Elitech ILD-200 with leak detector for all common refrigerants CFC, HFC, HCFC, PFC, and HFO, includes leak detector, UV light, charging cable, replacement filters, and carrying case. The infrared sensor features a long service life of over 10- years, undegradable sensitivity, and limiting false alarms, which is the best sensor in the leak detection system. Moreover, with exclusive ergonomic design, peak value record and innovative large TFT LCD screen, the detector optimizes the user experience and presents the detection results more intuitively and diversely. With ILD-200, you will ideally equip to carry out quick, reliable leakage detection.

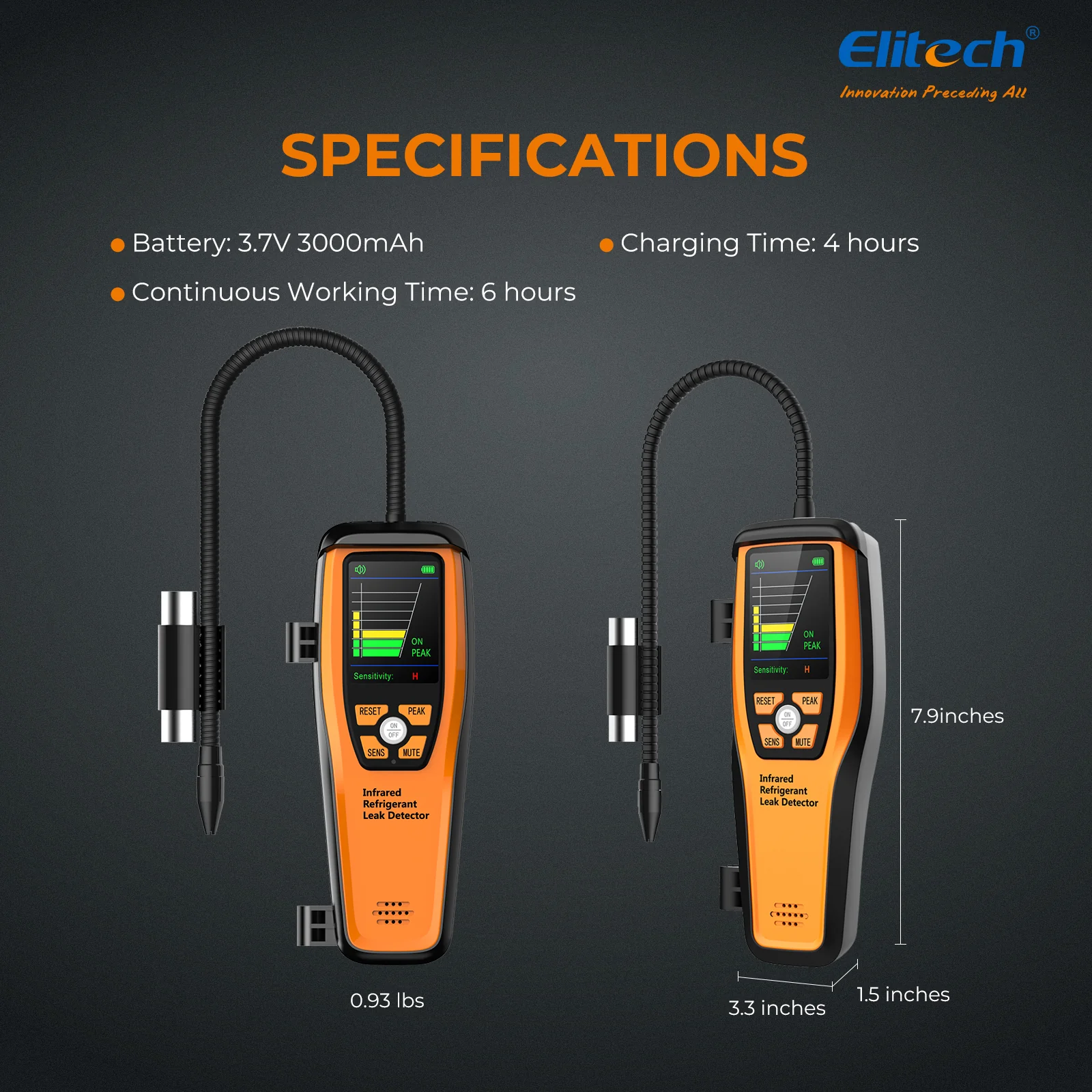

Elitech ILD-200 Parameter

Sensor Type	Infrared
Sensor Sensibility	Max. 4g/year
Sensor Life	10 years
Detectable Gases	R134a, R410A, R32, R-1234yf, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.
Auto OFF	After 10min of inactivity
Power	Built-in lithium battery 3.7V 3000mA
Battery Runtime	Up to 6 hours ccontinuously
Charging Time	Within 4hrs
Storage Temperature	-20°C~ 60°C (-4°F~ 140°F)
Operating Environment	Temperature: -10°C~ 52°C (-4°F~ 140°F) Humidity: 50%~85% RH
Alarm Mode	Audible and Visual
Tool Size	95*45*190mm (3.75*1.76*7.50in.)
Tool Weight	415g (14.6oz)
Certification	CE, SAE_J1627, SAE_J1791, SAE_J2913, EN14624:2012

Elitech ILD-200 Features

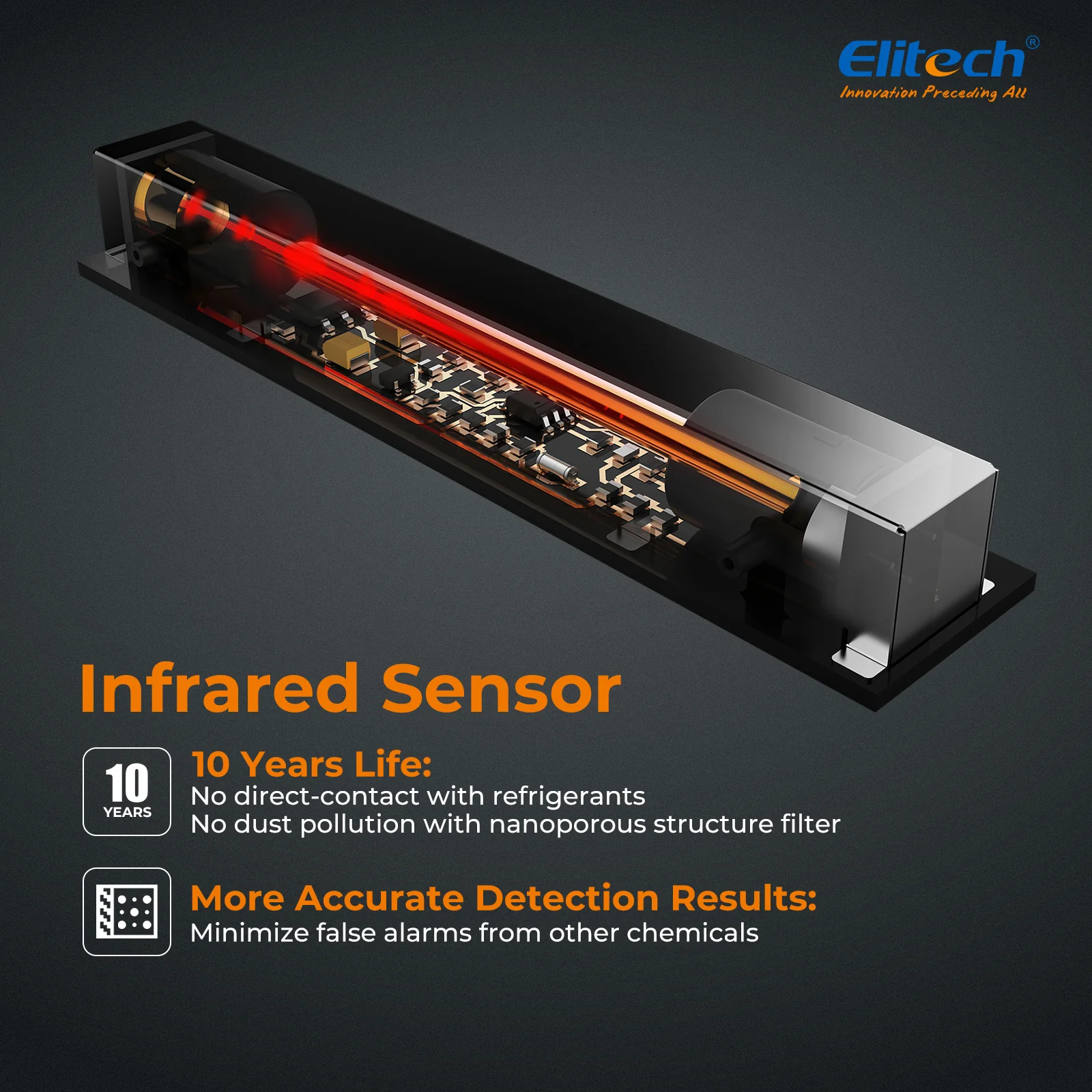

• Premium Infrared Sensor*    This refrigerant leak detector adopts a premium infrared sensor that has a long service life of over 10 years and its sensitivity won't degrade over time, making it the very best air conditioning leak detection tool.
• Precise and High Sensitivity*    The freon leak detector has a maximum sensitivity of 4g/yr, which enables the detection of even the smallest leaks. Sensitivity can also be adjusted in three different levels to pinpoint leakage quickly and precisely.

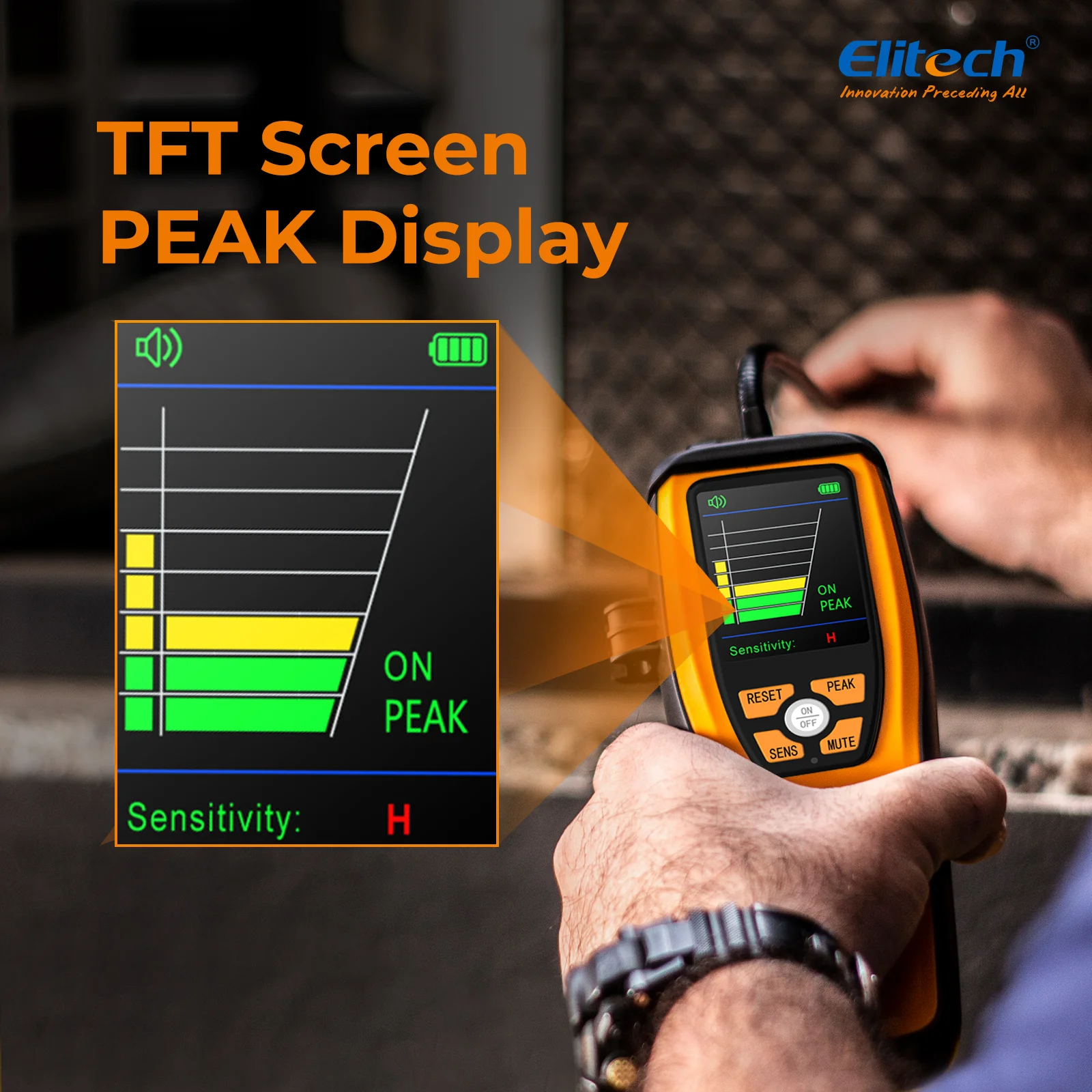

• Large TFT LCD Screen*    Very rarely in the industry, Elitech ILD-200 is equipped with a 2.8in. TFT LCD screen, to show real-time gas leakage concentration, sensitivity level, power, buzzer status, and false alarm. You can know everything about the detector in one glance.
• Rechargeable Lithium-ion Battery*    Built-in 3.7V 3000mA lithium-ion battery can work continuously for 6 hours upon one full charge. USB charging cable is included in the package for easy recharging through the Type C port.

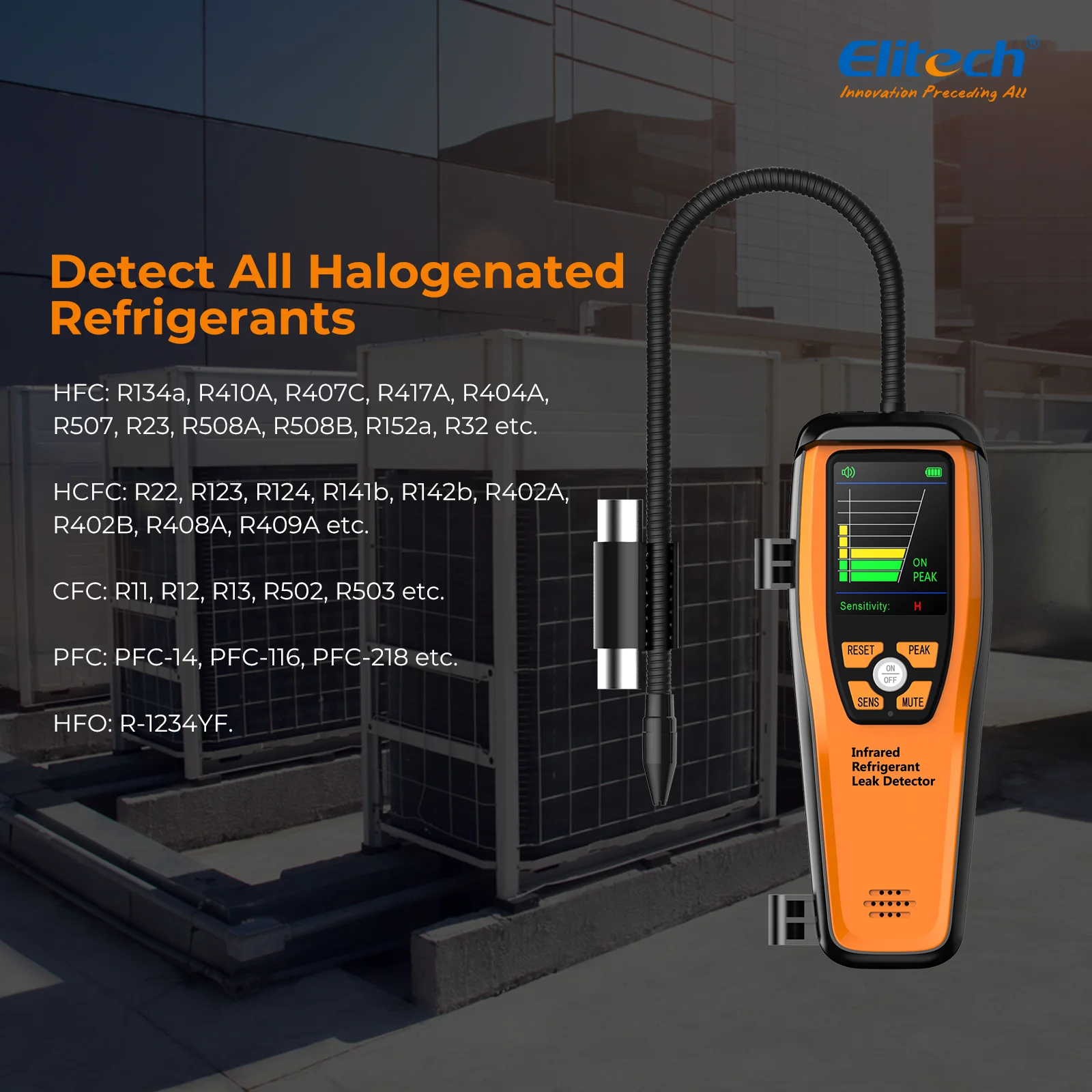

• An All-rounder in Leak Detection*   Elitech ILD-200 is a fast,reliable leak detector for all common refrigerants, including R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs.

An All-Rounder in Leak Detection* Detect all common refrigerants including R134a, R410A, R32, R22, HFO-1234 and all HFCs, HCFCs, CFCs, PFCs	Infrared Sensor* 10 Years’ Sensor Life; High Sensitivity up to 4g/yr; Limits False Alarm; Sensitivity won’t degrade over time	Large TFT LCD Screen* Everything about the detector and task can be viewed easily just in one glance
Sensitivity Adjustable* Sensitivity can be adjusted in three different levels: High, Medium and Low, to pinpoint leakage quickly and precisely	Rechargeable Lithium-ion Battery* Built-in 3.7V 3000mA lithium-ion battery can work continuously for 6 hours upon one full charge	Earphone Jack* Earplug connection for safe leakage detection in loud environments

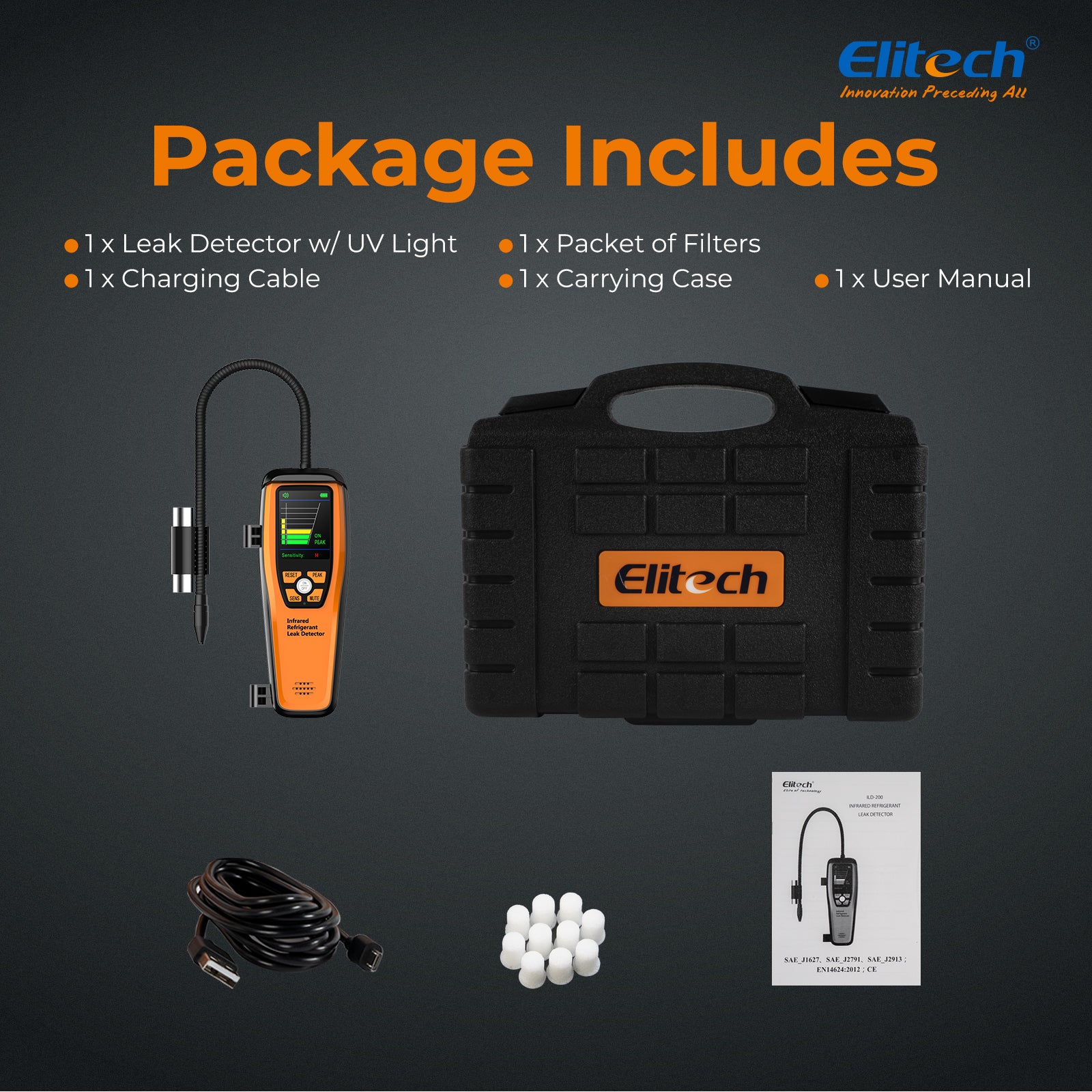

Elitech ILD-200 Package

• 1 x ILD-200 infrared leak detector
• 1 x UV light
• 1 x USB charging cable
• 10 x replacement filters
• 1 x sturdy carrying case

Elitech ILD-200 Related Documents

• Elitech ILD-200 Refrigerant Leak Detector User Manual
• Elitech ILD-200 Refrigerant Leak Detector CE Certification

Elitech Infrared Refrigerant Leak Detector Comparison
