Elitech ILD-200 MAX Infrared Refrigerant Leak Detector High-Precision HVAC/R Leak Detection, 10-Year Sensor Lifetime, 1g/a Ultra-Low Detection, 4 Sensitivity Levels, Rechargeable Battery, TFT Display & Sound Alarm

Utilizing Infrared Sensor Technology, this ILD-200 MAX advanced detector ensures 1g/a Ultra-Low Leak Detection with superior accuracy, outperforming heated diode sensors. Its 10-Year Sensor Lifetime eliminates sensor burnout, enhancing durability for Faster & More Reliable Leak Detection. The Four-Level Sensitivity Adjustment adapts to various environments, while the Dual Alarm System – TFT Display & Sound Alert provides real-time leakage updates. Designed for Air Conditioning Leak Detection, Refrigeration System Inspection, and Commercial HVAC/R Maintenance, its Portable & Durable Design supports industrial applications like Supermarket & Cold Storage System Maintenance and Industrial Refrigerant Leak Check with ease.

High-Precision Infrared Detection: Utilizes infrared spectrum absorption technology to accurately detect various refrigerants, including CFCs, HFCs(R32), HCFCs, and HFOs(R-1234yf), with a minimum detectable leak rate of 1g/a.

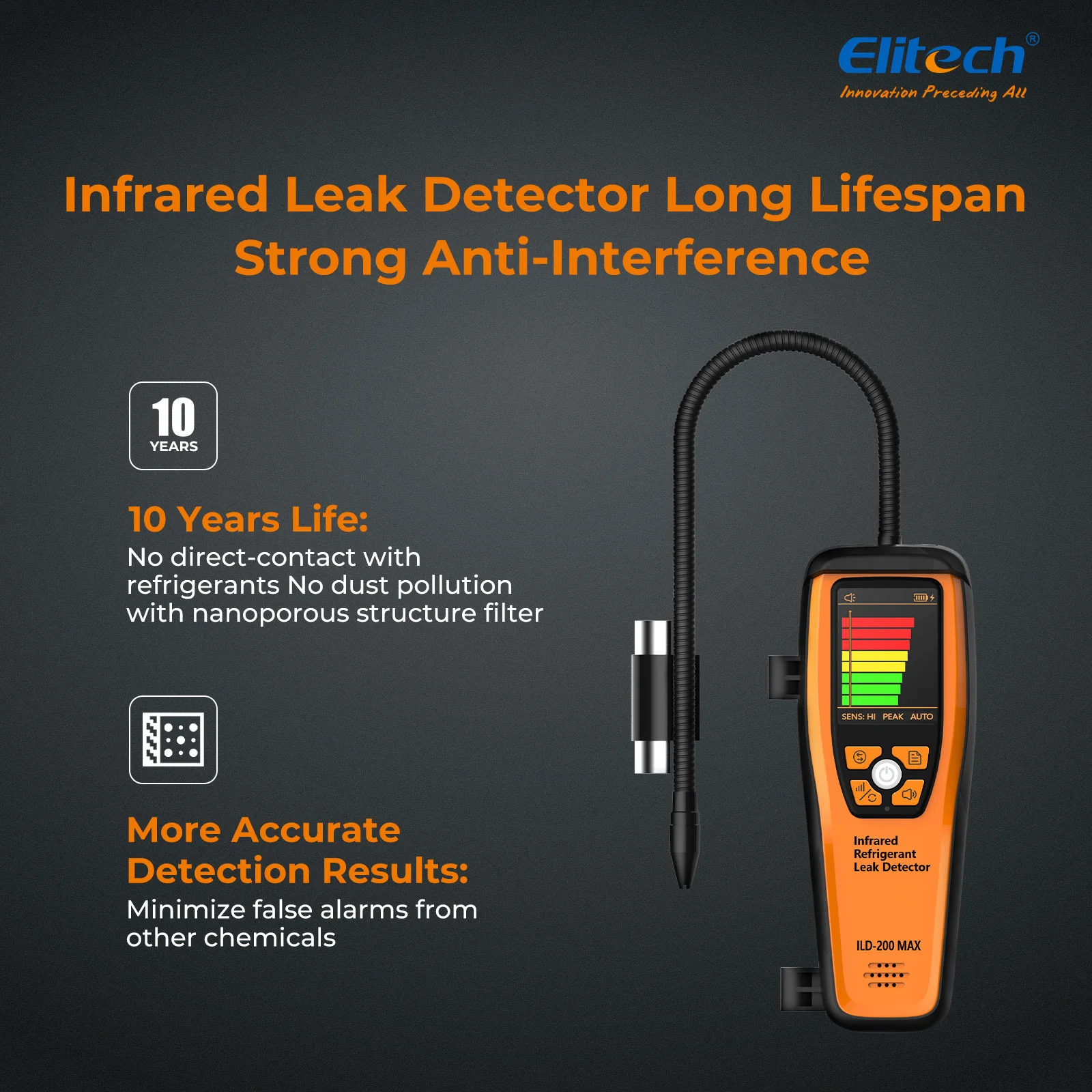

Long-Life Sensor: Equipped with a 10-year lifespan infrared sensor, offering greater stability and durability compared to traditional heated diode sensors, reducing maintenance costs and improving detection reliability.

Intuitive Alarm Indication: Features a 2.8-inch TFT LCD screen and dual audio-visual alerts, providing real-time leakage status for enhanced detection efficiency, even in complex work environments.

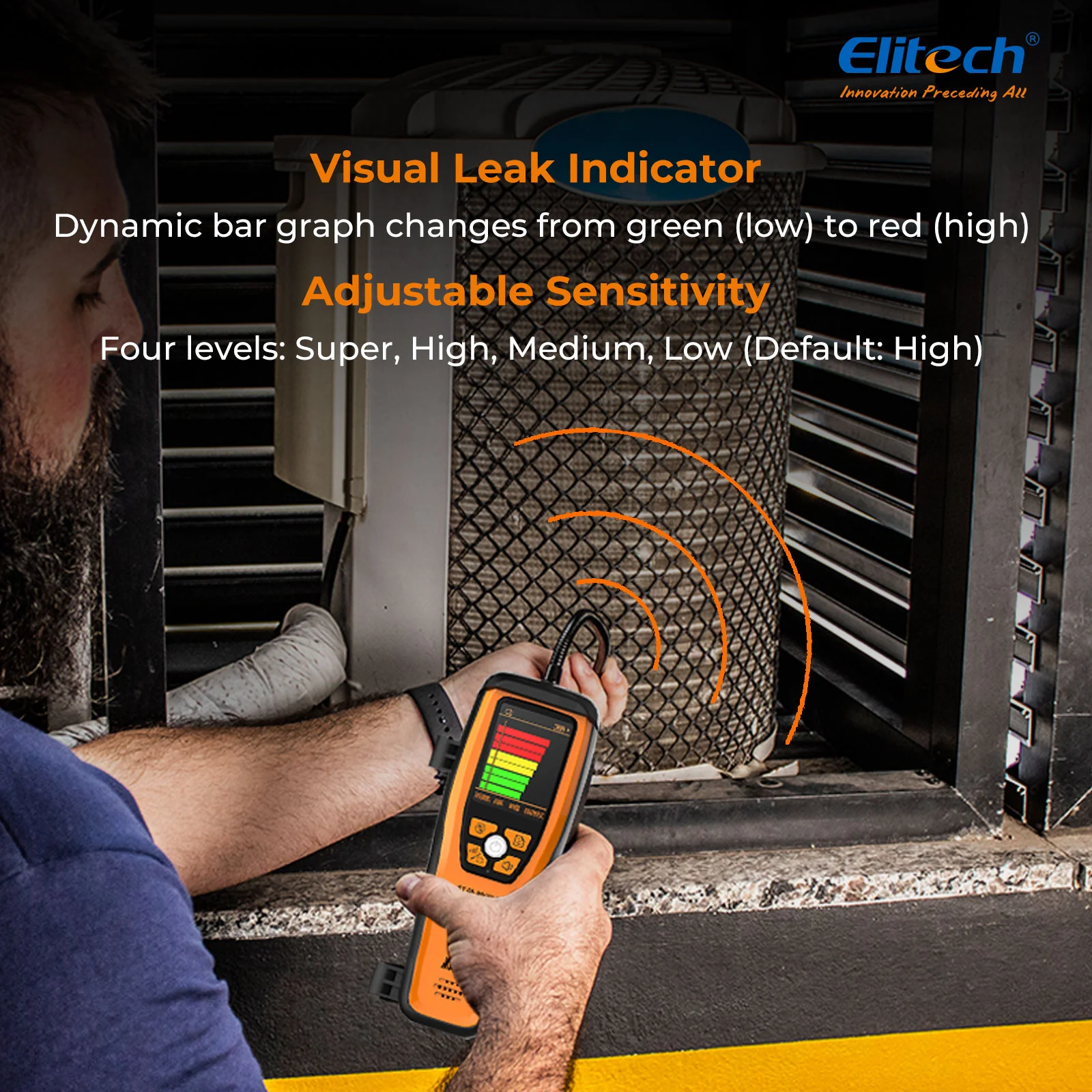

Four-Level Sensitivity Adjustment: Supports Super (1g/a), High (3g/a), Medium (7g/a), and Low (14g/a) sensitivity settings, allowing precise leak detection across various operating conditions.

Long Battery Life & Durable Portability: Built-in 3000mAh rechargeable lithium battery, providing 8 hours of continuous operation with 4-hour fast charging. Designed for use in -10°C to 52°C temperature range with up to 90% humidity tolerance. Weighing only 415g (14.6oz), it is lightweight and convenient for HVAC and refrigeration professionals to use for extended periods.

Product Specifications

• Power Supply: Lithium battery (3.7V 3000mAh)

• Sensor Principle: Infrared spectrum absorption

• Sensor Lifespan: 10 years

• Sensitivity: Four-level sensitivity adjustment

  • Super: 1g/a

  • High: 3g/a

  • Medium: 7g/a

  • Low: 14g/a
    (g/a: grams of leakage per year)

• Detectable Gases: CFCs, HFCs, HCFCs, HFOs (e.g., R134a, R410a, etc.)

• Alarm Method:

  • Indication on a 2.8-inch TFT LCD screen

  • Sound indication

• Operating Environment:

  • Temperature: -10°C to +52°C

  • Humidity: Maximum 90% (without condensation)

• Working Time: 8 hours

• Charging Time: 4 hours

• Battery: Lithium battery (3.7V 3000mAh)

• DC Input: 5V/1A

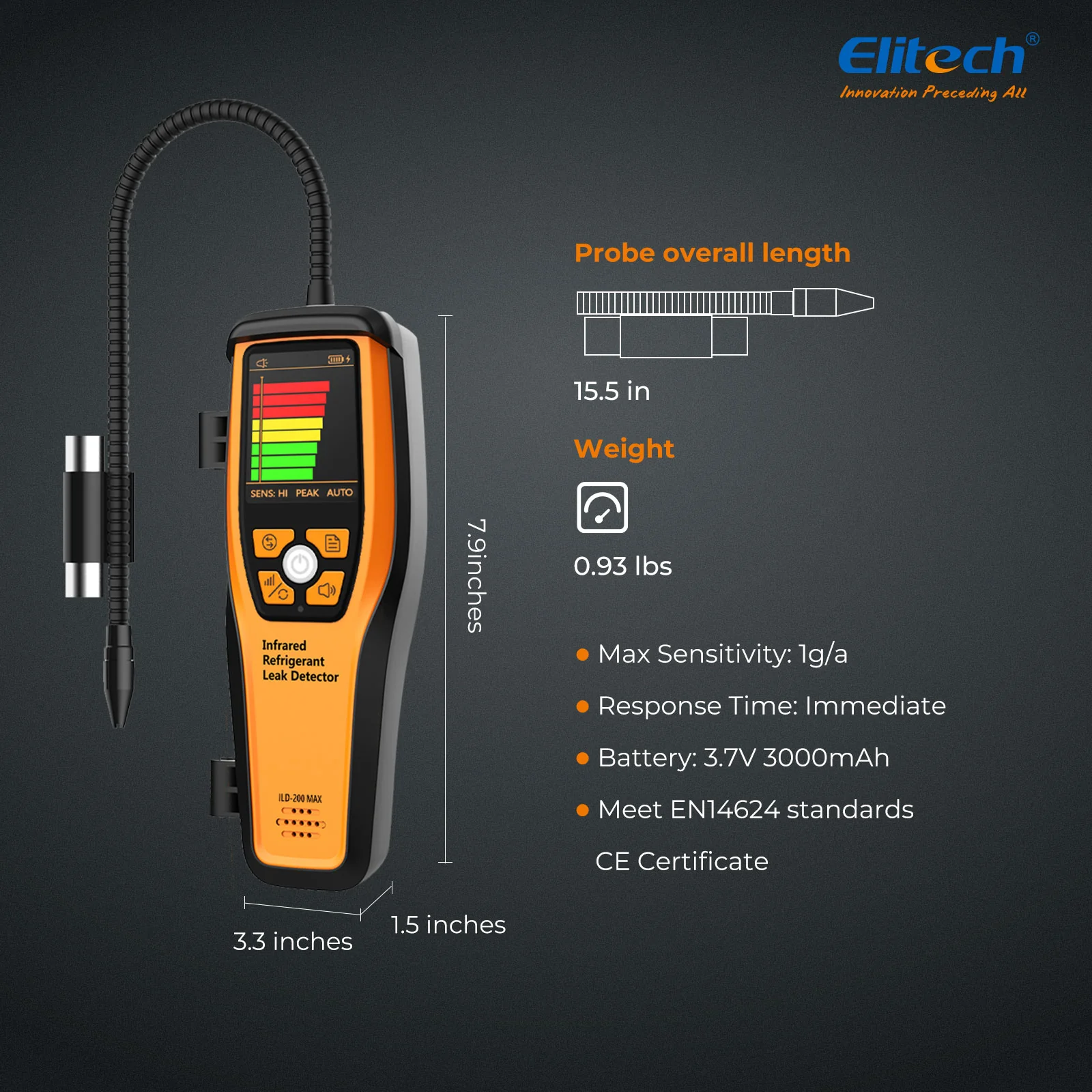

• Dimensions: 201 × 86 × 38mm

• Weight: 415g (14.6oz)
