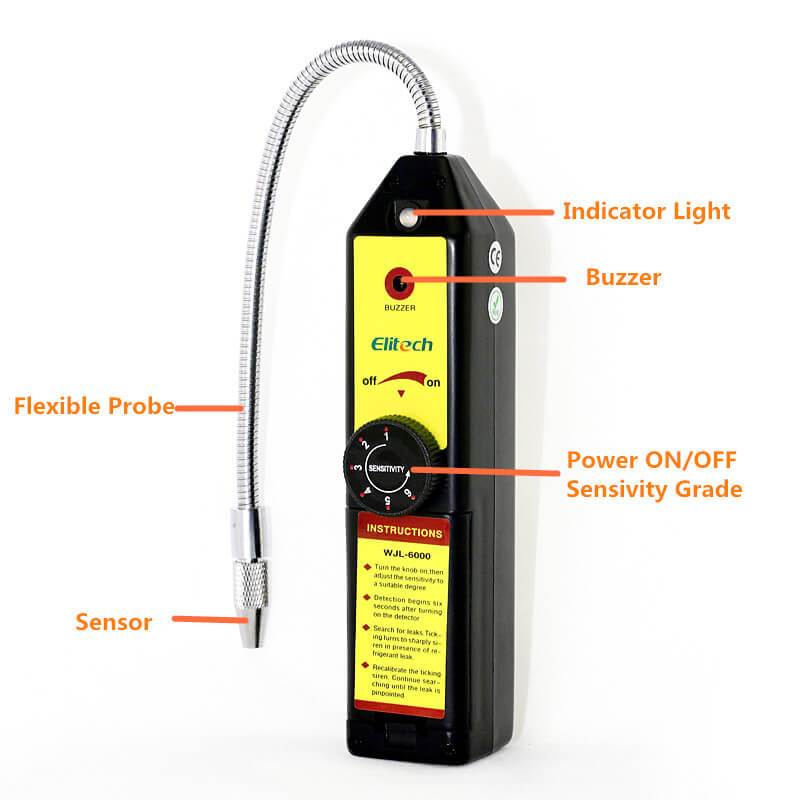

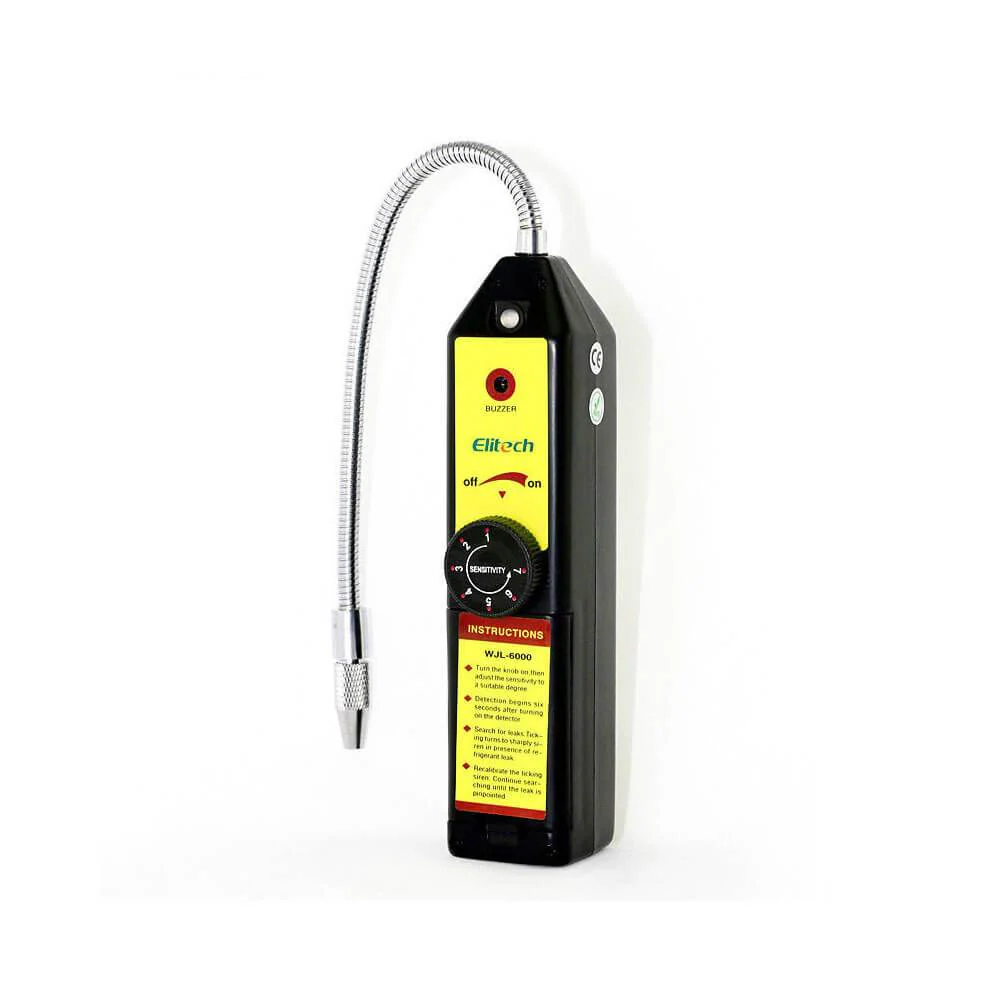

Elitech WJL-6000 Refrigerant Leak Detector Corona Sensor HVAC Halogen Gas Tester



Elitech WJL-6000 Halogen Leak Detector 100% Elitech new Halogen Gas HFC CFC Refrigerant Leak Detector Checker. --Its advanced detection technology enables it to recognize all HFC (134a) CFC refrigerants. -Audio and visual alerts warn of any leakages, no matter how small.

• 1. Detect all kinds of halogen refrigerant gases;

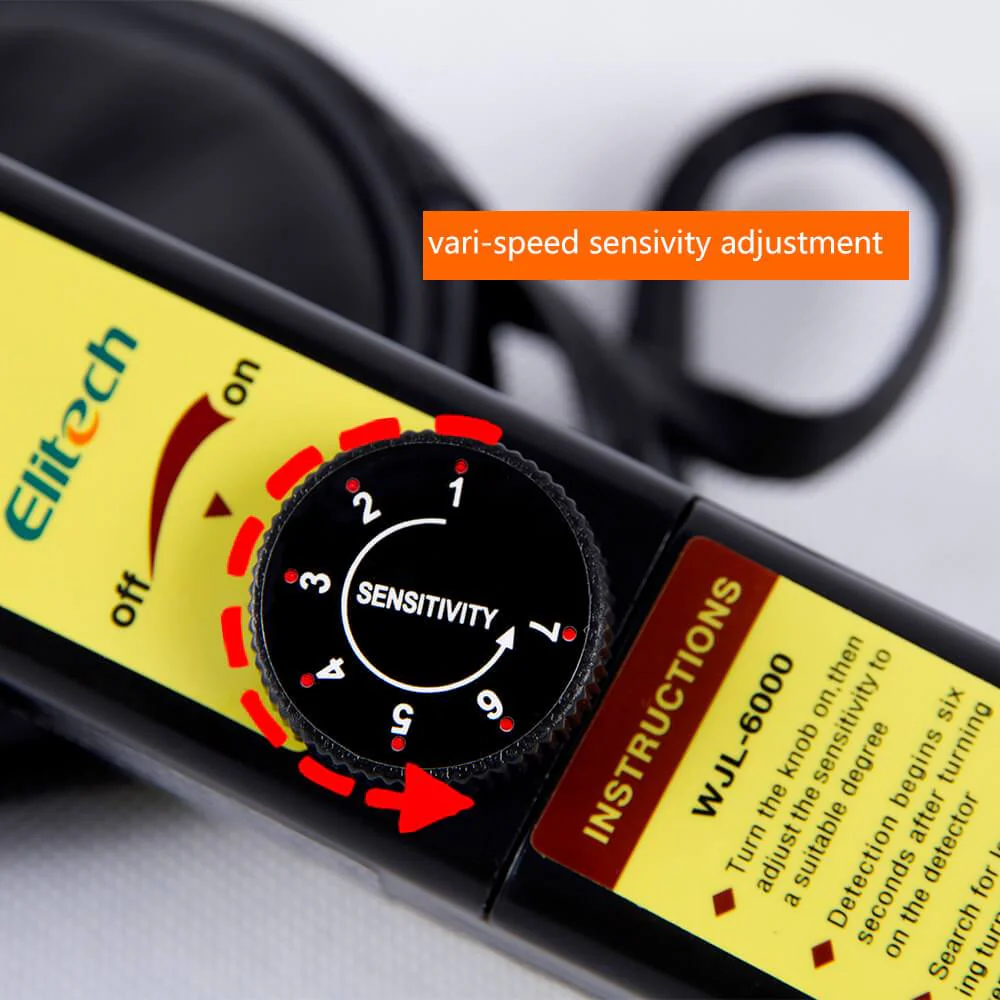

• 2. Sensitivity adjusted at any time and it can be adjusted automatically to the best state of detecting;
• 3. Inner precise IC with ultra-low power consumption circuit design, more stable, longer battery life;
• 4. Dual-color visual display of battery voltage;

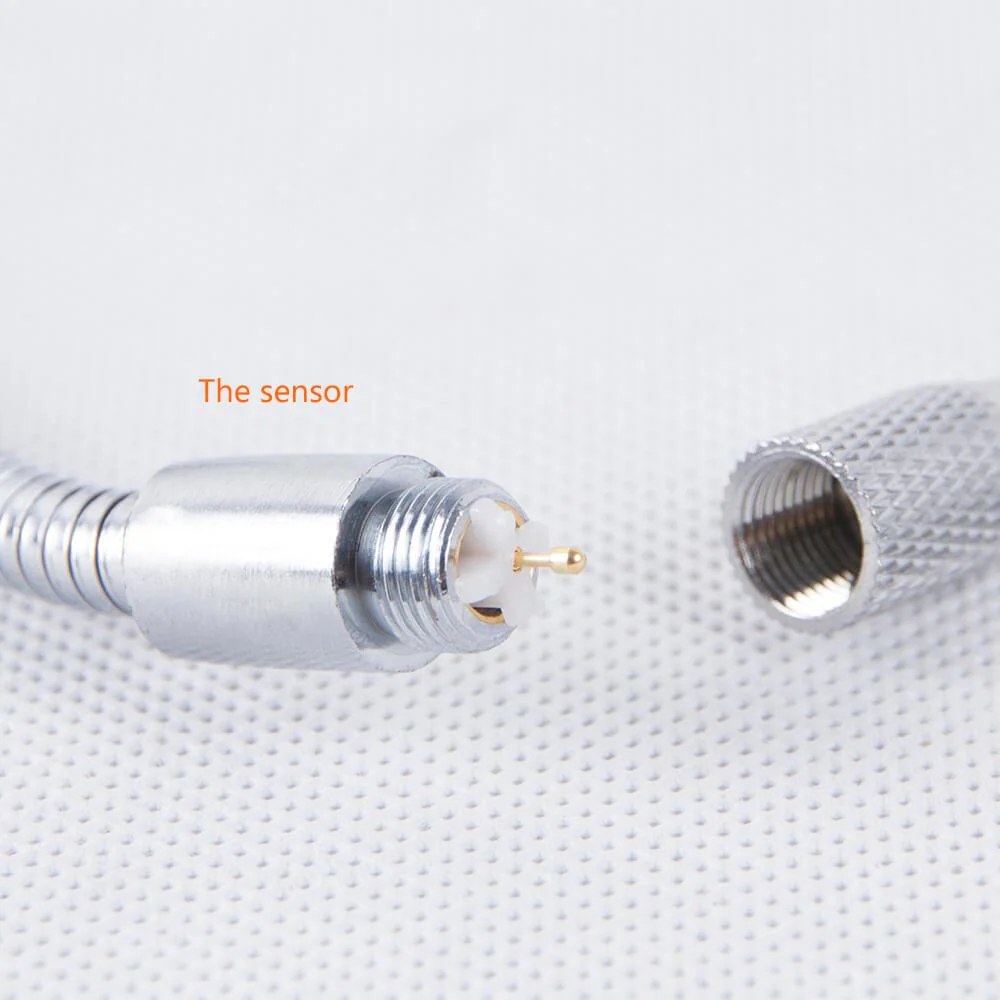

• 5. Excellent sensor, high sensitivity, long lifetime.

Applications:

It will respond to all halogenated (contains Chlorine of Fluorine) refrigerants. This includes, but is not limited to:

• CFCs e.g.R12, R11, R500, R503, etc.
• HCFCs e.g. R22, R123, R124, R502, etc.
• HFCs e.g. R32, R134a, R404s, R125, etc.
• HFOs e.g. R-1234yf
• Blends such as AZ-50, HP62, MP39, etc.

Detect Ethylene Oxide gas leaks in hospital sterilizing equipment(it will detect the halogenated carrier gas).

Detect SF-6 in high voltage circuit breakers.
Detect most gases that contain chlorine, fluorine, and bromine (halogen gases).
Detect cleaning agents used in dry cleaning applications such as perchloroethylene.

Operating temperature	0℃-52℃(30°F to 125°F)
Maximum sensitivity	6 g/yr, for all halogenated refrigerants
Battery life	approximately 50 hours normal use
Response time	Instantaneous
Operating mode	continuous, no limitation

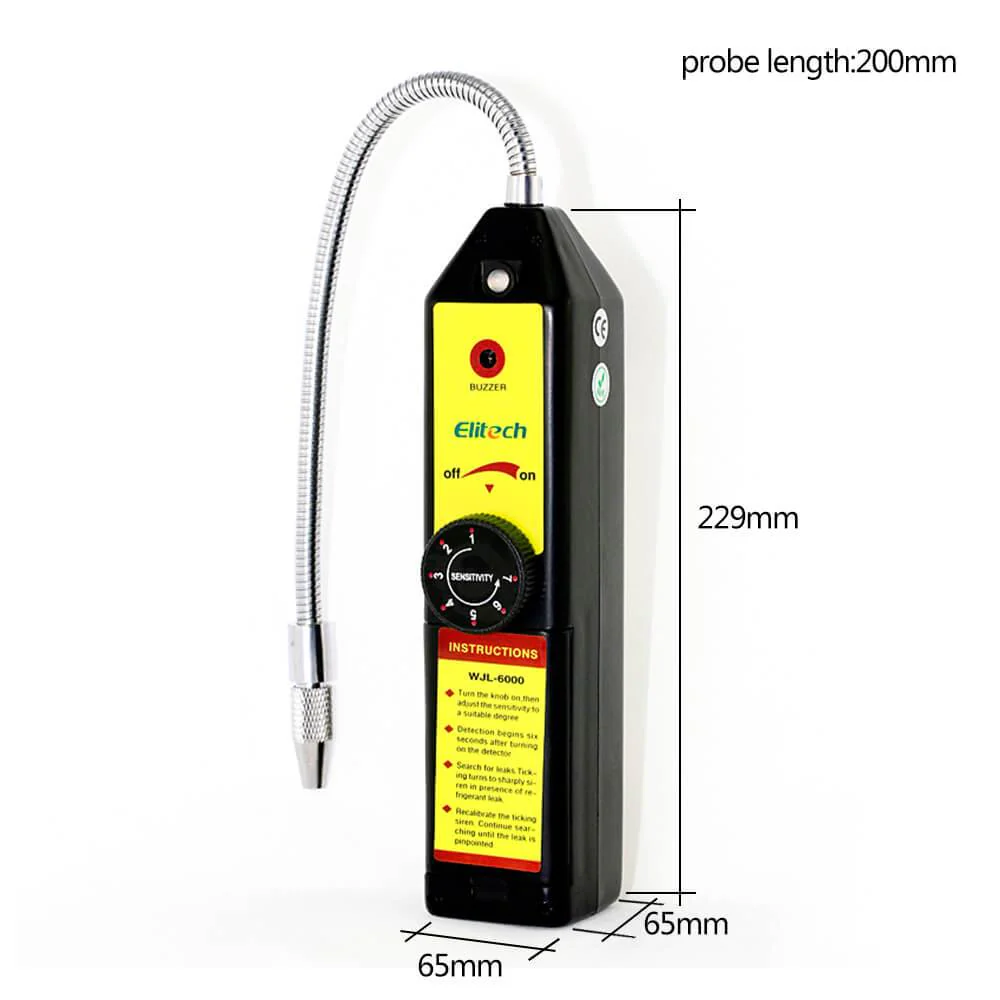

Fixed probe length	20cm
Warm-up time	approximately 6 seconds
Reset time	2-10 seconds

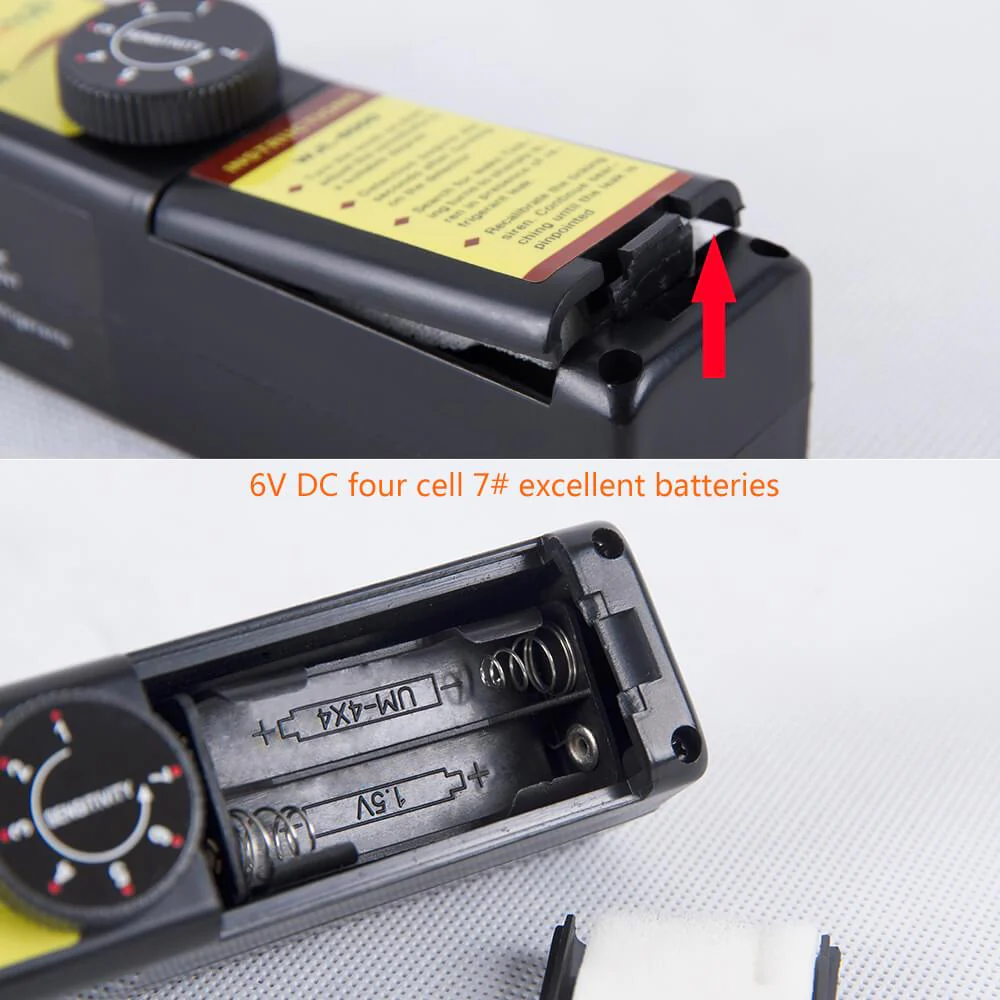

Power supply	6V DC, 4 AAA alkaline batteries



Elitech WJL-6000 Refrigerant Leak Detector User Manual
