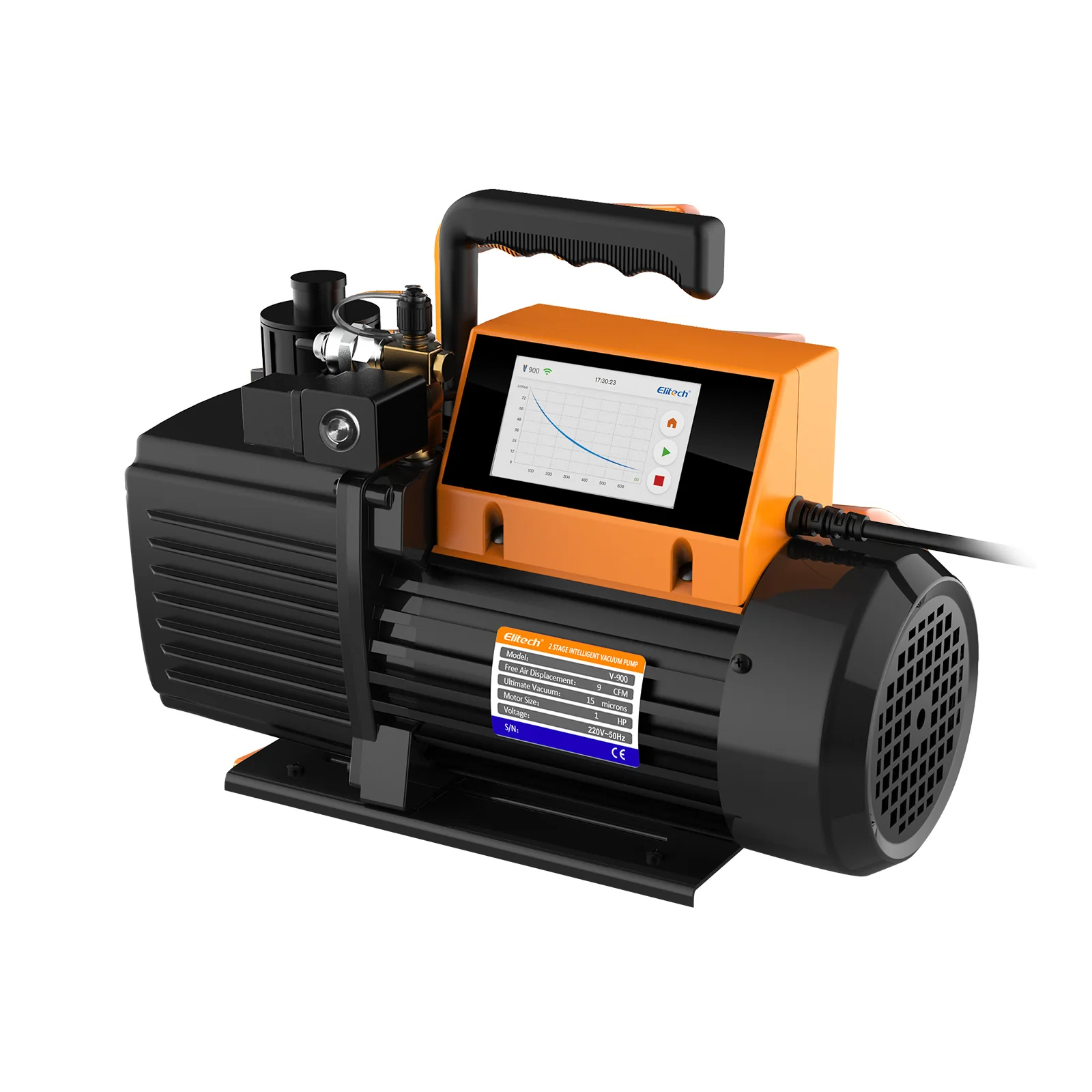

Elitech SVP-9/V900 220V Intelligent 2-Stage Vacuum Pump, 9CFM, 4L/S, APP Control, Data Logging, Smart Control, HVAC Refrigerator Heat Pump Auto Air Condition Service Tool (oil is not included)

Elitech SVP-9 2-stage vacuum pump is an intelligent vacuum pump that can be controlled through APP via Bluetooth connection at a distance of 30ft/10m maximum, the pumping rate is 4 L/S (9 CFM) and the motor power is 1 HP (750 W).

Elitech SVP-9 Vacuum Pump Features

Intelligent Control*   The motor and solenoid valve will turn off automatically once the programmed vacuum value is reached. When the pump sensed working temperature is abnormally high due to motor failure or insufficient oil, the pump will automatically close the solenoid valve to protect it from big defects.

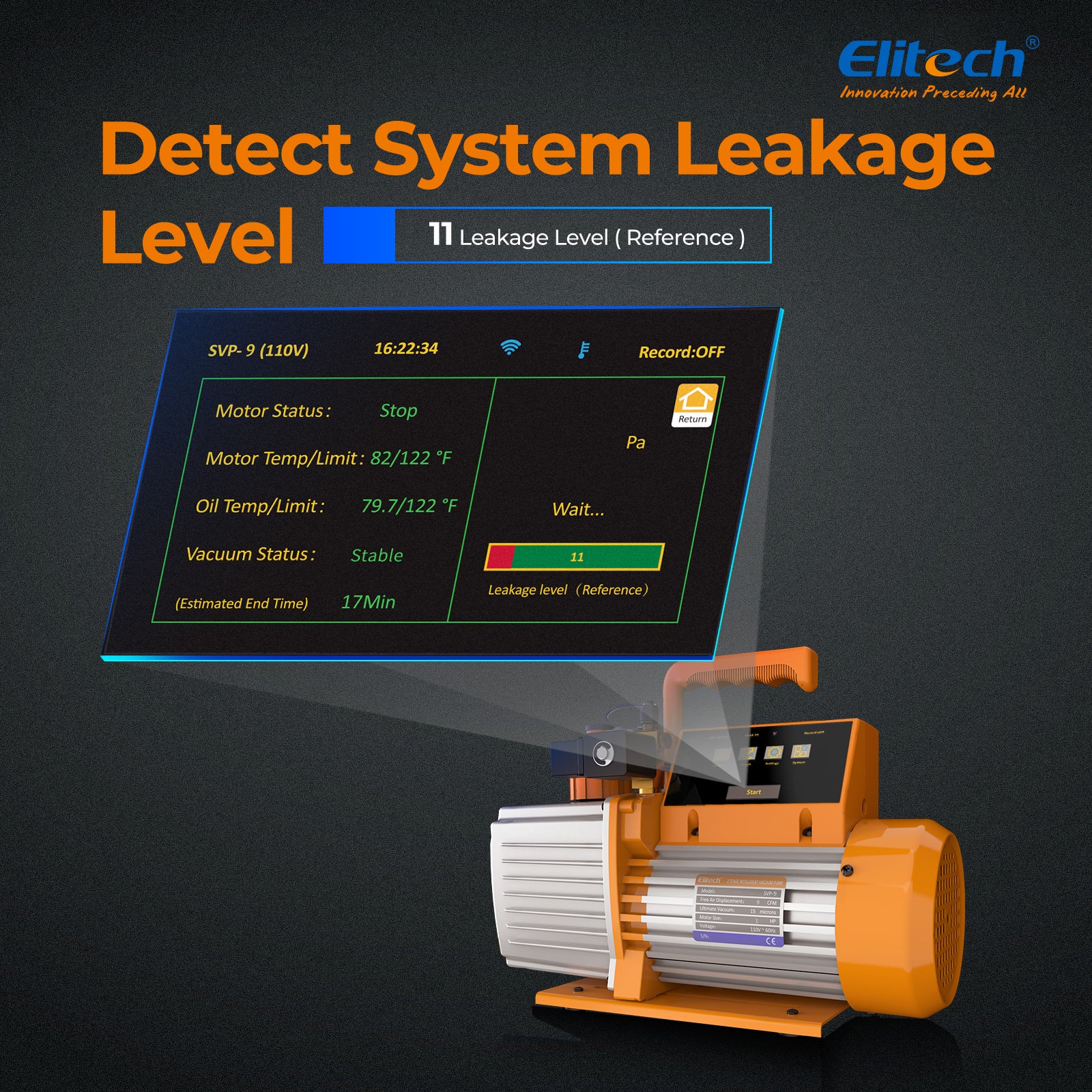

System Leakage Judgement*   Based on sophisticated analysis of vacuum value change and pump working status, the pump will judge system leakage level and display leakage level in the bar for easy reference.

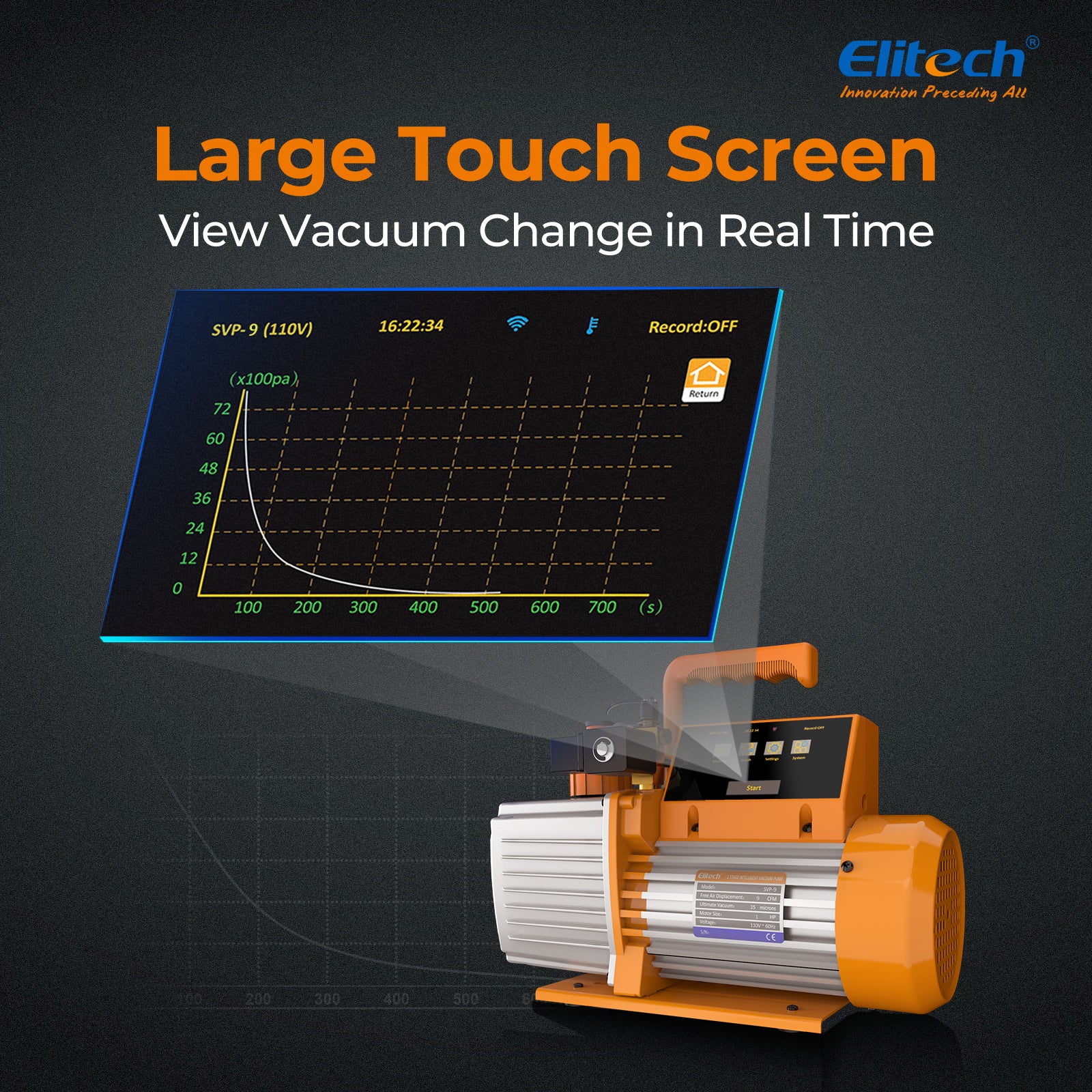

Vacuum Value & Graph Display*   When the vacuum value drops below 60,000 microns, the real-time vacuum value and graph will show on the 4'' touch screen for quick knowledge.

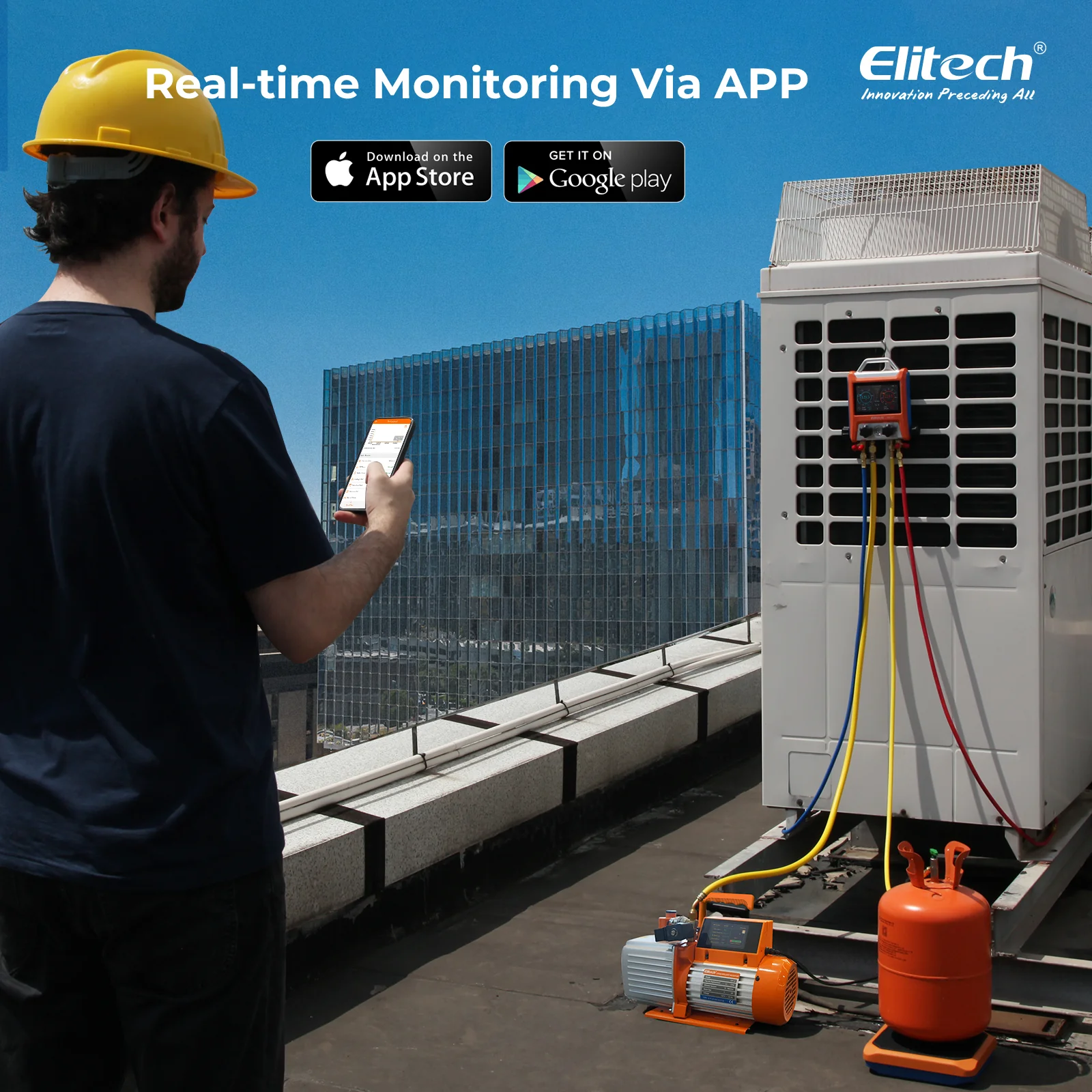

APP Monitoring*   The pump can be controlled through APP via Bluetooth connection at a distance of 30ft/10m maximum. Everything about the pump can be easily viewed and controlled via APP.
Estimated Working Hour Needed*   The pump can estimate the working hours needed to complete the task and display the remaining working time to keep users on top of vacuuming progress.
Data Logging & Report Exporting*   Each task's vacuum graph can be stored and viewed on APP. Reports can be exported in excel or PDF formats. Besides, you can also save and export screenshots of the working interface in PDF.

Intelligent Control	Vacuum Value & Graph Display	Vacuum Value & Graph Display
APP Monitoring	Estimated Working Hour Needed	Data Logging & Report Exporting

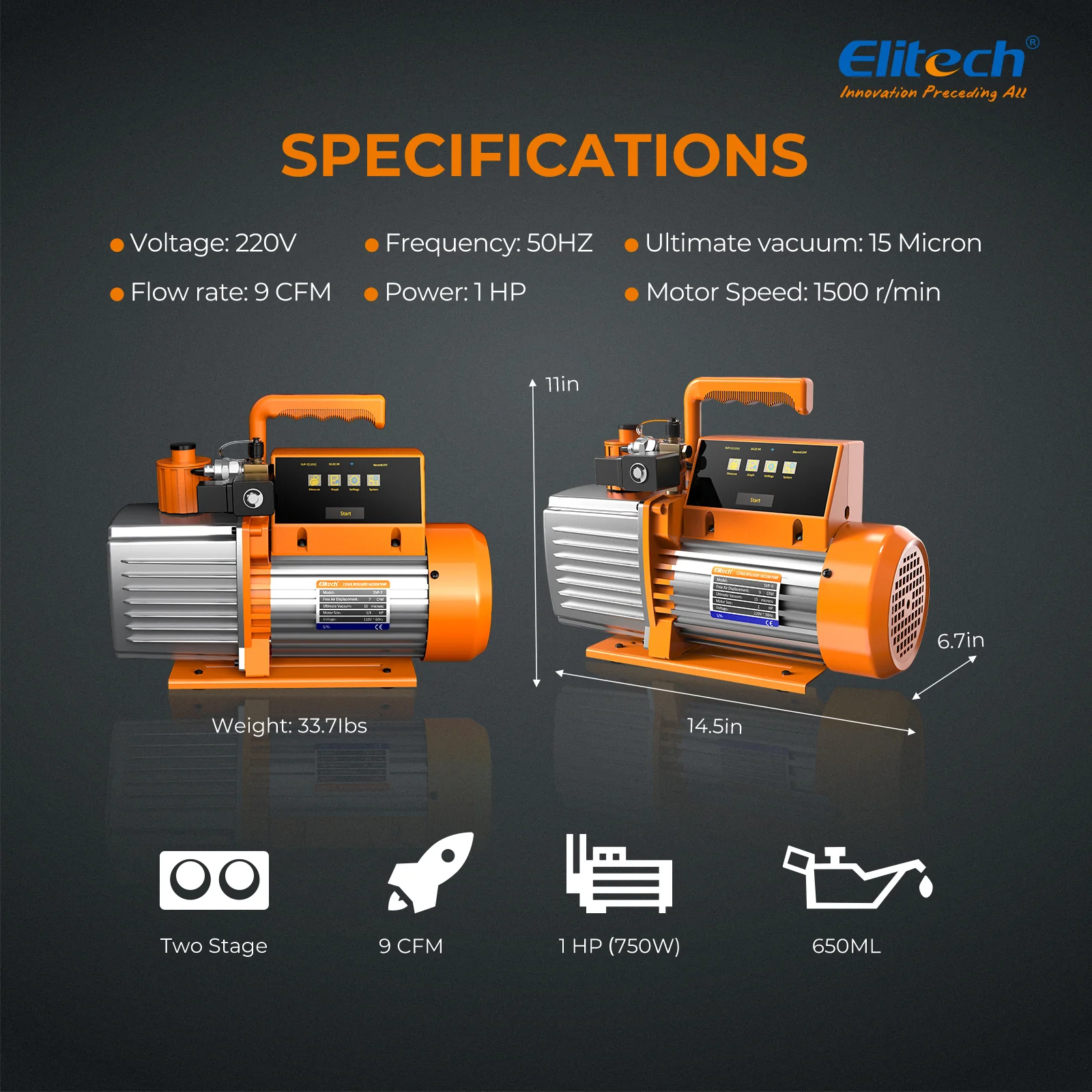

Elitech SVP-9 Vacuum Pump Specification

Model#	SVP-9
Stage	Two Stages
Power Supply	220V/50Hz
Motor	AC Induction Motor
Motor Power	1 HP (750 W)
Ultimate Vacuum	15 microns
Vacuum Unit	micron, kPa, Pa, mbar, inHg, Torr, mTorr
Vacuum Accuracy	1-10,000 microns ±10%
	10,000 -19,000 microns ±20%
Operating Temperature	5°C~ 40°C (41°F~ 104°F)
Bluetooth transmission Distance	30 ft / 10 m
Pumping Rate	4 L/S (9 CFM)
Oil Volume	22 oz / 650 ml
Air Inlet	1/4 SAE
Tool Dimension	470*267*380 mm / 18.5*10.5*14.8 in.
Gross Weight	35.3 lbs / 15.3 kg

Elitech SVP-9 Related Documents

• Elitech SVP-9 Vacuum Pump User Manual ( PDF Download )
• Elitech SVP-9 Vacuum Pump CE Certification
